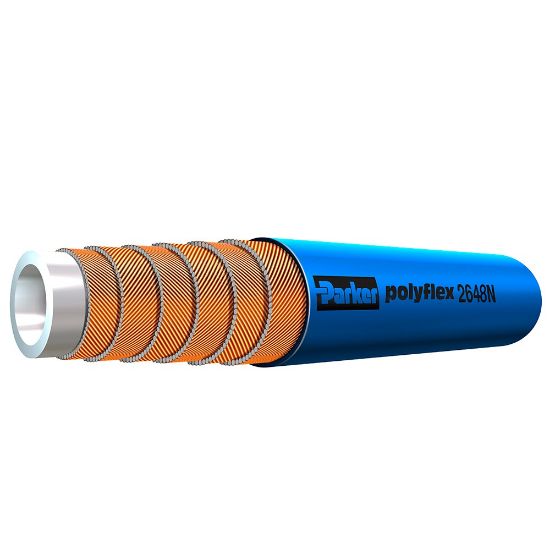

Picture of 2648N-16V32 - Water Jetting Hose - 2640N/2648N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2648N-16V32 - Water Jetting Hose - 2640N/2648N

Parker 2640N/2648N high pressure cleaning hose handles pressures up to 26,000 psi (1,800 bar) in water jetting applications.
Availability:
Backordered
Estimated Lead Time: 21 days
Partner Available:Backordered
SKU 2648N-16V32
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)1
Maximum Working Pressure (psi)21,750Minimum Operating Temperature14 °F
MediaChemicalsMinimum Bend Radius400 mm
Hose Inner Tube MaterialPolyamide (PA)Inside Diameter1 inch
Cover MaterialPolyamide (PA)Size-16
Design Factor2.5:1Maximum Operating Temperature158 °F
Specifications MetDIN 1829-2Maximum Operating Pressure1500 bar
Weight3.10 kg/mOutside Diameter40.8 mm
Compatible FittingCX SeriesHose Reinforcement Material6 Spirals of Maximum Tensile Steel Wire
