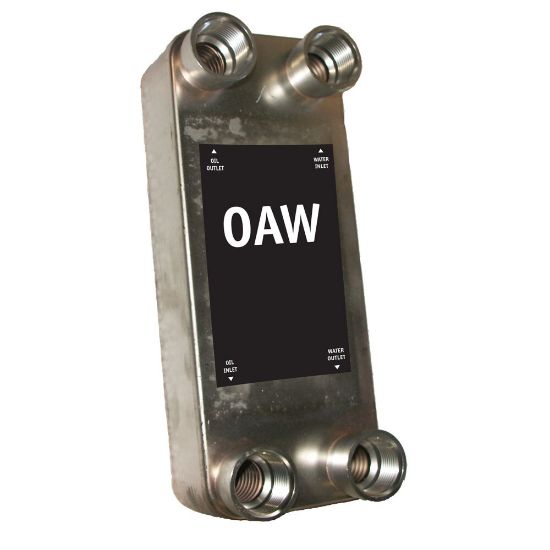

OAW 34-20 - Water Oil Cooler - Brazed Plate OAW Series - (Americas)

The OAW Series of water oil coolers offers rugged, brazed plate construction; providing the highest performance and most compact size available.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	1 Limited Stock

SKU OAW 34-20

$1,919.35/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Size	OAW-34-20
Port Size	1	Materials of Construction	Stainless Steel AISI 316
Maximum Operating Pressure	450 psi	Weight	4.1 kg
Maximum Flow Rate	24 Gal/min	For Fluid Type	Oil Side: Mineral Oil, Oil/Water Emulsion, Water Glycol, Phosphate Ester
Height	87 mm	Length	290 mm
Connection Thread Size	1-5/16"-12 inch	Maximum Cooling Capacity	24.7 kW

Product resources

Literature and Reference Materials

Industrial and Mobile Coolers Catalog - HY10-1700 (PDF)
