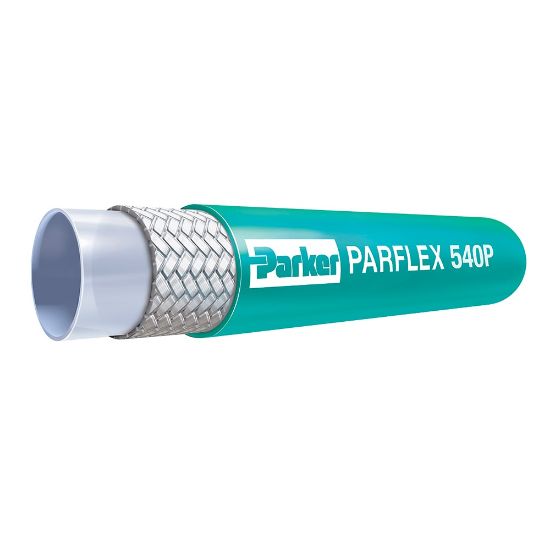

540P-4 - Water Transfer Hose - 540P

Name: 540P-4 - Water Transfer Hose - 540P
SKU: 540P-4
Price: 4.31 USD
Availability: InStock

Parker's 540P has a FDA compliant polyethylene core tube. This hose was developed for specialty water applications such as potable water and has expanded into other applications including CO2 transfer and two part foam and insulation applications.

Availability:

30 in stock

Kansas City, KS

Partner Available:

1523 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 540P-4

$4.31/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Inside Diameter	1/4
Minimum Operating Temperature	-40	Size	-4
Design Factor	4:1	Maximum Operating Temperature	150
Cover Material	Polyurethane	Compatible Fitting	56 Series
Hose Reinforcement Material	Fiber	Outside Diameter	0.500
Media	Chemicals - Check your fluid compatibility with our catalogue chart.	Maximum Operating Pressure	2750
Weight	0.05	Inside Diameter	0.250
Specifications Met	FDA 21 CFR 177	Minimum Bend Radius	1-1/4
Hose Inner Tube Material	Polyethylene (PE)
