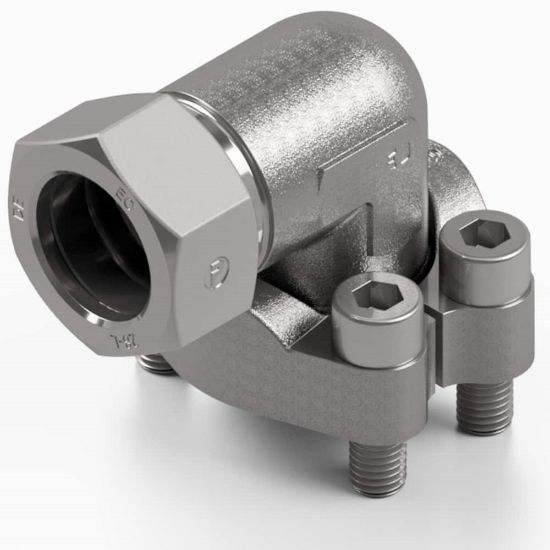

WFS35/30SCF

Availability:	Backordered Estimated Lead Time: 99 days
Partner Available:	Backordered

SKU WFS35/30SCF

$291.56/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

4 bolt flange connection ISO 6162-1/2 (SAE J518 Code 61/62) and ISO 6164 is a proven leak-free connection, especially suited for larger sizes. As a result, it has achieved worldwide acceptance. The connection’s success is in its simplicity. It is a static face seal using a high durometer O-ring for the seal and clamps and bolts for holding power. The O-ring seal is compressed between the bottom of the groove in the flange head and the flat surface of the port or flange pad, providing a reliable soft seal.

Applications:

Suitable for general hydraulic and industrial applications.This simple design provides several advantages over threaded port connections, such as NPT, SAE, BSPP, ISO 6149 etc., in larger sizes:

Ability to connect tube fittings connection systems to SAE port systems

Much lower tightening torque required from the four bolts compared to equivalent fitting assembly torques

Less tightening torque means smaller wrenches and wrench swing clearances – providing ease of assembly intight working environment.

Single seal point between tube/pipe/hose assembly and the port

Ease of disassembly through use of split clamps possible

Markets:

Products specifications

Attribute name	Attribute value
UOM	EA	Flange Size	1 1/4 Inch
Style	90° Elbow	Assembly Includes	Adapter including Splitflanges Metric Bolts O-Ring Nut and Cutting Ring
Parker Division	Hose Products	Parker Group	Fluid Connector
Bolt Size	Standard	Port Type	SAE 3000/ISO 6162-1
