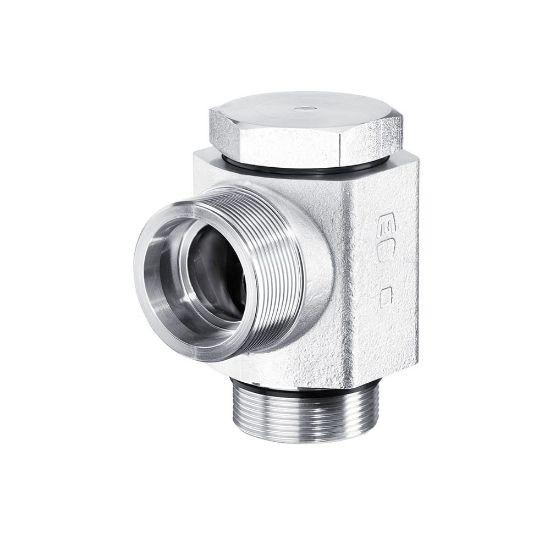

WHK38SRCF

Availability:	Backordered Estimated Lead Time: 147 days
Partner Available:	Backordered

SKU WHK38SRCF

$415.72/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Banjo fittings are used in applications with limited space that involve high working pressure levels.In the past, the Parker banjo fitting product range has included the W H(high-pressure resistant), SWVE (compact design) and DSVW (very good flow) properties series.Now, we have combined these 3 series to create the new WHK series, uniting all of the advantages of our former banjo fitting designs.Besides the product features also the product safety was improved. By the new design banjo bolts can not fall out during assembly thanks to the optimized design. Above that a mix-up between metric and Inch dimensions is not possible anymore.

Applications:

Suitable for general hydraulic applications.

Features:

High-pressure resistant (up to 420 bar)

Compact design

Soft-sealing system with outstanding sealing properties

Low pressure loss thanks to optimized banjo bolt design with angled drilling

2-in-1: Metal sealing version available - no additional metal sealing ring required

Improved security

Improved warehouse management

Markets:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type 1	24° Cone End
Optional Accessories	Pre-Assembled with Nut and EO-PSR Cutting Ring	Connection Size	G 1 1/2 A
Tube Outside Diameter 1	38 MM	Shape	Banjo Elbow
Series	Heavy	Connection Type 2	Male BSPP Thread with Metal Sealing Ring
Parker Group	Fluid Connector	Parker Division	Tube Fitting
Connection Size 3	G 1 1/2 A
