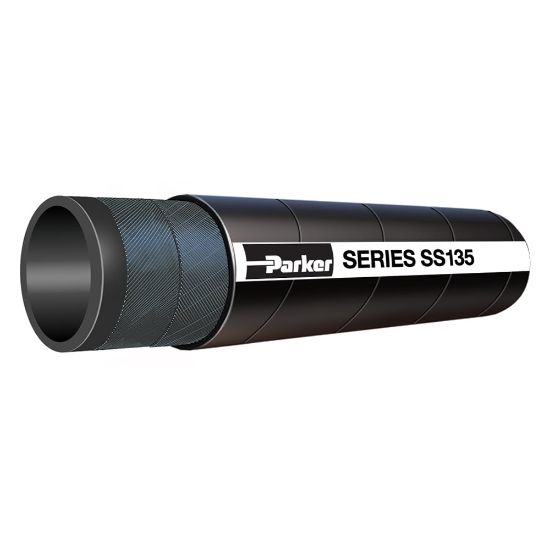

SS135-4500 - WILDCATTER® Dry Cement Material Handling Hose, Series SS135

Wildcatter Dry Cement Material Handling Hose incorporates a 1/8” thick rubber tube and is designed for gravity flow/low pressure transfer of dry abrasive materials in applications to 180°F and 65 psi, Series SS135

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	204 in stock

SKU SS135-4500

$34.10/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	4-1/2
Maximum Operating Pressure	65 psi	Length per Package	100 ft
Cover Structure	Wrapped	Cover Material	Styrene Butadiene Rubber (SBR)
Hose Inner Tube Material	Styrene Butadiene Rubber (SBR) Static Dissipative	Weight	1.71 lb
Cover Color	Black	Package Type	Coil
Hose Reinforcement Material	2 Plies of Textile	Media	Dry Abrasive Powders (Silica)
Minimum Bend Radius	n/a	Inside Diameter	114.3 mm
Outside Diameter	127 mm	Maximum Operating Temperature	180 °F
Minimum Operating Temperature	-40 °F
