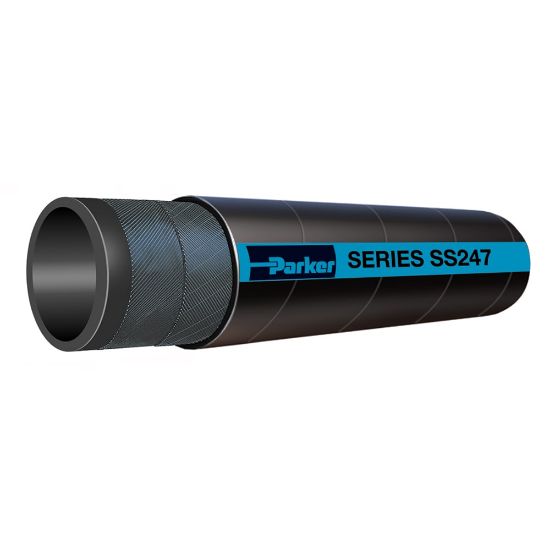

SS247-5000 - WILDCATTER® Heavy Duty Dry Cement Material Handling Hose, Series SS247

Wildcatter Heavy Duty Dry Cement Material Handling Hose incorporates a 1/4” thick rubber tube and is designed for low pressure transfer of dry abrasive materials in applications to 180°F and 75 psi, Series SS247

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU SS247-5000

$50.94/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5
Minimum Operating Temperature	-40 °F	Length per Package	100 ft
Hose Inner Tube Material	Black Static Dissipative	Cover Material	Styrene Butadiene Rubber (SBR)
Weight	3.11 lb	Cover Structure	Wrapped
Maximum Operating Pressure	75 psi	Cover Color	Black
Media	Dry Abrasive Powders (Lime)	Package Type	Coil
Hose Reinforcement Material	2 Plies of Textile	Minimum Bend Radius	n/a
Maximum Operating Temperature	82 °C	Inside Diameter	5 inch
Outside Diameter	5.750 inch
