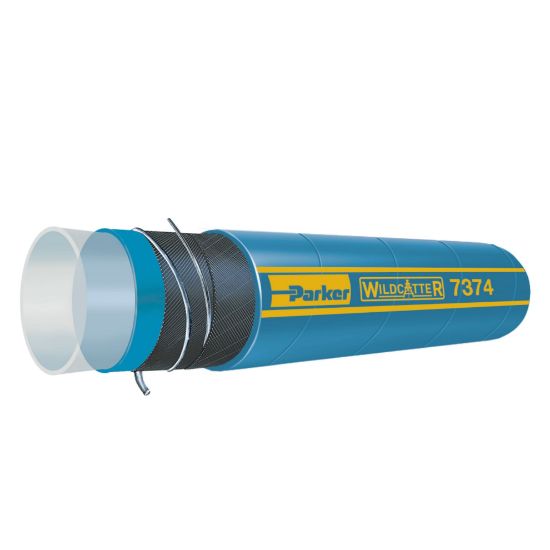

7374-2000 - WILDCATTER® Oilfield High Pressure Chemical Hose, Series 7374

Wildcatter Oilfield High Pressure Chemical Hose is designed for suction, discharge and transfer of acids, chemicals and solvents in applications to 180°F and 600 psi, Series 7374

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	60 in stock

SKU 7374-2000

$71.71/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Maximum Working Pressure (psi)	400	Minimum Operating Temperature	-40 °C
Specifications Met	N/A	Design Factor	4:1
Media	Chemicals	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Package Type	Coil	Length per Package	100 ft
Cover Color	Blue	Maximum Operating Temperature	180 °F
Inside Diameter	2 inch	Compatible Fitting	n/a
Maximum Operating Pressure	400 psi	Minimum Bend Radius	203.2 mm
Cover Structure	Wrapped	Vacuum Pressure Rating	Full
Weight	2.21 kg/m	Outside Diameter	2.680 inch
Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE)	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
