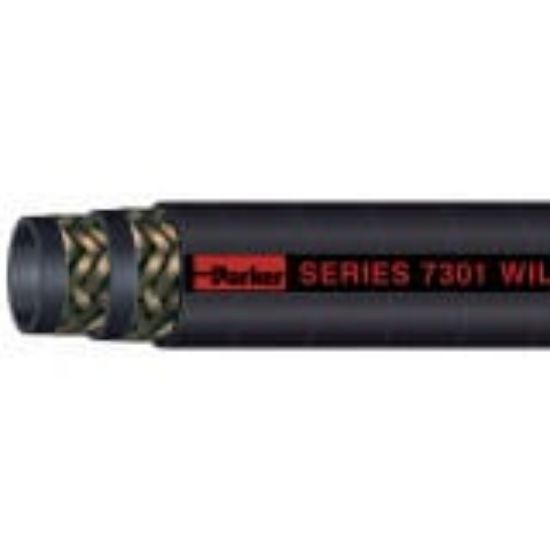

7301-1502150 - WILDCATTER® Oilfield Hot Oiler Hose, Series 7301

Wildcatter Oilfield Hot Oiler Hose is designed for high pressure transfer of hot oil and petroleum products in applications to 275°F and 2250 psi, Series 7301

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU 7301-1502150

$58.78/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1-1/2
Standard Pack Qty (ft)	150	Maximum Working Pressure (psi)	2250
Minimum Operating Temperature	-40 °C	Specifications Met	N/A
Package Type	Coil	Cover Color	Black
Inside Diameter	38.1 mm	Cover Material	Chloroprene Rubber (CR)
Maximum Operating Pressure	2250 psi	Weight	1.59 lb
Hose Inner Tube Material	Chloroprene	Cover Structure	Wrapped
Hose Reinforcement Material	2 Braids of Wire	Media	Chemicals (Wax)
Outside Diameter	50.8 mm	Minimum Bend Radius	330.2 mm
Maximum Operating Temperature	275 °F Continuous

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
