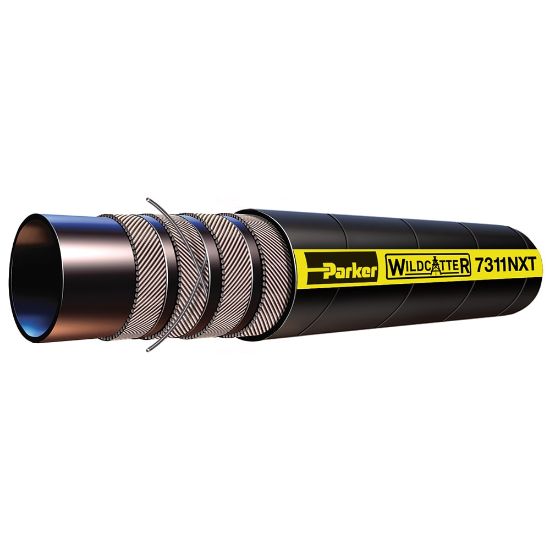

7311NXT-3000 - WILDCATTER® Oilfield Multipurpose Fracking Hose, Series 7311N/7311NXT

Series 7311N/7311NXT Wildcatter Oilfield Multipurpose Fracking Hose is designed for high pressure transfer of abrasive slurries, drilling mud, fuel, mild chemical solutions, oil and water in applications to 200°F and 400 psi.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 7311NXT-3000

$40.08/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3
Hose Cover Material	Nitrile blend/UHMPE; wrapped finish	Minimum Operating Temperature	-40 °C
Specifications Met	N/A	Design Factor	4:1
Package Type	Coil	Length per Package	100 ft
Cover Color	Black	Maximum Operating Temperature	200 °F
Minimum Bend Radius	n/a	Hose Inner Tube Material	Black
Maximum Operating Pressure	400 psi	Media	Fuels - Check fuel type with our catalogue chart.
Inside Diameter	76.2 mm	Vacuum Pressure Rating	n/a
Weight	0.88 kg/ft	Cover Material	Nitrile Blend
Outside Diameter	94.7 mm	Hose Reinforcement Material	4 Plies of Textile with Dual Static Wires

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
