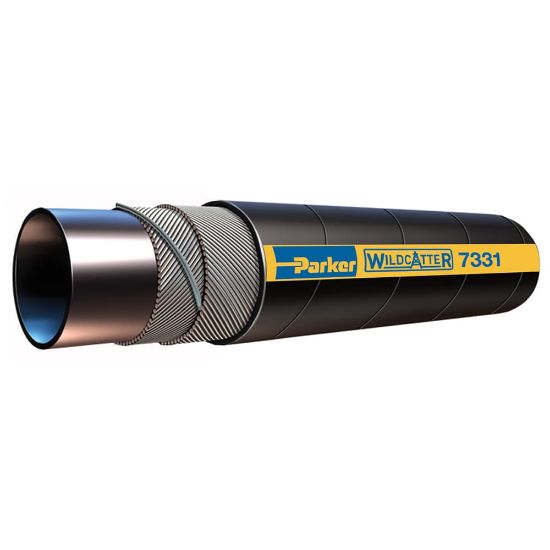

7331-2000 - WILDCATTER® Oilfield Multipurpose Fracking Hose, Series 7331

Wildcatter Oilfield Multipurpose Fracking Hose is designed for high pressure transfer of abrasive slurries, drilling mud, fuel, mild chemical solutions, oil and water in applications to 200°F and 400 psi, Series 7331

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU 7331-2000

$23.34/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Minimum Operating Temperature	-40 °C	Specifications Met	N/A
Design Factor	4:1	Package Type	Coil
Length per Package	100 ft	Minimum Bend Radius	8 inch
Cover Color	Black	Inside Diameter	2 inch
Hose Inner Tube Material	Black	Media	Fuels - Check fuel type with our catalogue chart.
Maximum Operating Pressure	27.6 bar	Outside Diameter	64.8 mm
Cover Structure	Wrapped	Vacuum Pressure Rating	Full
Hose Reinforcement Material	Multiple Plies of Textile with Wire Helix	Weight	1.16 lb/ft
Cover Material	Nitrile Blend	Maximum Operating Temperature	92 °C
