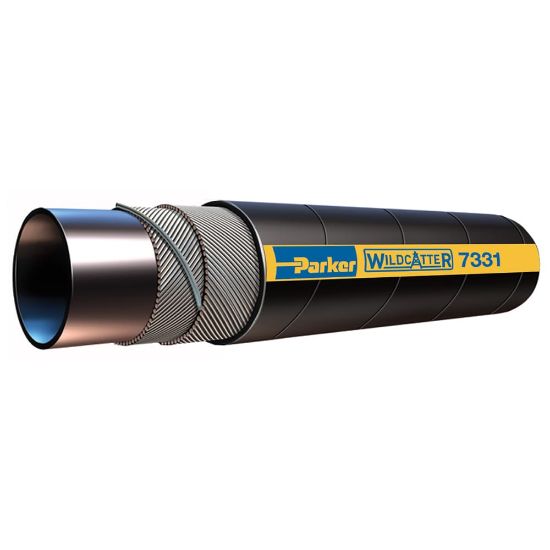

7331-3000 - WILDCATTER® Oilfield Multipurpose Fracking Hose, Series 7331

Wildcatter Oilfield Multipurpose Fracking Hose is designed for high pressure transfer of abrasive slurries, drilling mud, fuel, mild chemical solutions, oil and water in applications to 200°F and 400 psi, Series 7331

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU 7331-3000

$35.00/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3
Minimum Operating Temperature	-40 °C	Specifications Met	N/A
Design Factor	4:1	Package Type	Coil
Length per Package	100 ft	Cover Color	Black
Hose Inner Tube Material	Black	Media	Fuels - Check fuel type with our catalogue chart.
Minimum Bend Radius	15 inch	Maximum Operating Pressure	27.6 bar
Inside Diameter	76.2 mm	Cover Structure	Wrapped
Vacuum Pressure Rating	Full	Hose Reinforcement Material	Multiple Plies of Textile with Wire Helix
Cover Material	Nitrile Blend	Weight	2.95 kg/m
Outside Diameter	91.7 mm	Maximum Operating Temperature	92 °C

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
