Picture of 7216E-1252 - WILDCATTER® Oilfield Petroleum Transport Suction Hose, Series 7216E

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

7216E-1252 - WILDCATTER® Oilfield Petroleum Transport Suction Hose, Series 7216E

Wildcatter Oilfield Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 180°F and 150 psi, Series 7216E
Availability:
10 in stock
COLUMBIA, MO10
Partner Available:6634 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 7216E-1252
$12.39/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)1-1/4
Maximum Working Pressure (psi)150Specifications MetN/A
Design Factorn/aPackage TypeCoil
Length per Package100 ftMinimum Bend Radius102 mm
Cover ColorBlackMinimum Operating Temperature-37 °C
Maximum Operating Pressure10.3 barInside Diameter1-1/4 inch
Hose Inner Tube MaterialBlackCover MaterialSynthetic Rubber
Compatible Fitting43 SeriesMaximum Operating Temperature82 °C
MediaFuels (Biodiesel to B20 in dedicated service)Cover StructureWrapped
Vacuum Pressure RatingFullWeight0.97 kg/m
Outside Diameter42.4 mmHose Reinforcement Material2 Plies of Textile with Dual Wire Helix
Customers who bought this item also bought

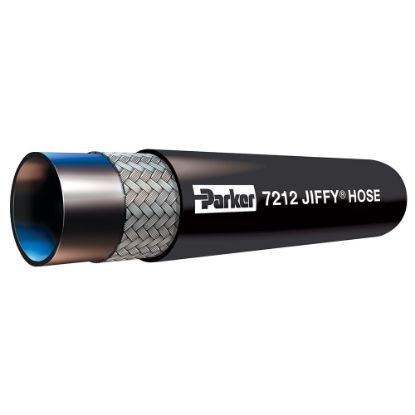

Picture of 7212-750BK - JIFFY™ Push-On Multipurpose Oil Resistant Hose, Series 7212

7212-750BK - JIFFY™ Push-On Multipurpose Oil Resistant Hose, Series 7212

Jiffy Push-On/Push Lock Oil Resistant Multipurpose Rubber Hose is designed to transfer air, mild chemicals, oil, water and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to 212°F and 300 psi, Series 7212.
$6.33/foot
