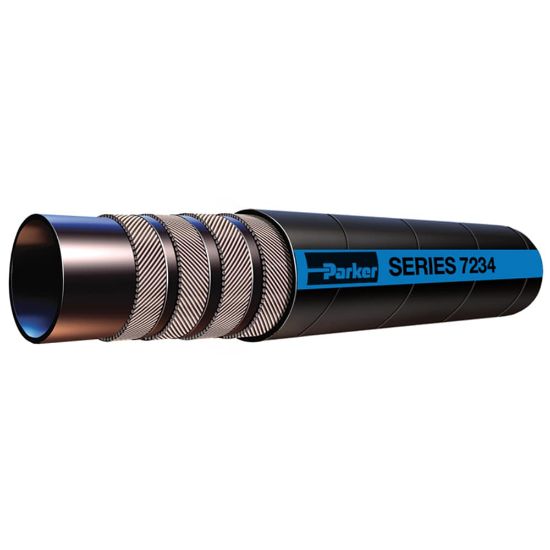

7234-2002 - WILDCATTER® Oilfield Slim Hole Rotary Drill Hose, Series 7234

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 30 days
Partner Available:	168 in stock

SKU 7234-2002

$39.59/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Minimum Operating Temperature	-40 °C	Maximum Operating Pressure	3000 psi
Specifications Met	N/A	Media	Water
Package Type	Coil	Length per Package	100 ft
Cover Color	Black	Maximum Operating Temperature	200 °F
Inside Diameter	2 inch	Hose Inner Tube Material	Black
Cover Structure	Wrapped	Cover Material	Nitrile
Weight	1.25 kg	Outside Diameter	2.593 inch
Minimum Bend Radius	317.5 mm	Hose Reinforcement Material	2 Braids of Wire
Compatible Fitting	WC Series	Tube Material	Nitrile

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
