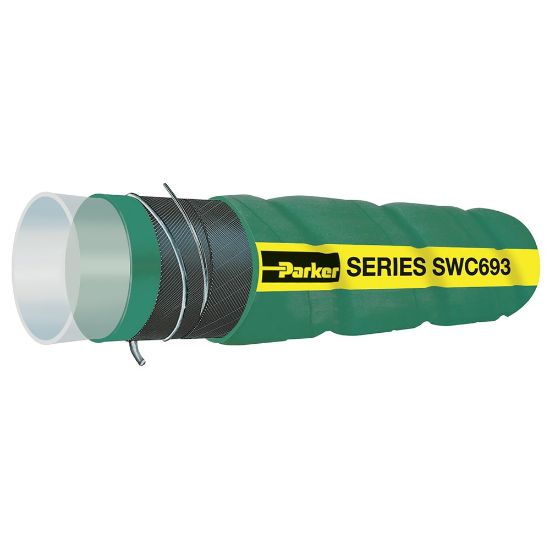

SWC693-2000 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE

Name: SWC693-2000 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE
SKU: SWC693-2000
Price: 24.72 USD
Availability: InStock

Wildcatter Oilfield UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 250 psi

Availability:

87 in stock

Wichita, KS

Partner Available:

3137 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU SWC693-2000

$24.72/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Color	Green	Weight	0.93 lb/ft
Minimum Operating Temperature	-40 °C	Compatible Fitting	n/a
Maximum Operating Pressure	250 psi	Nominal Hose Inside Diameter	50 mm
Media	Solvents	Minimum Bend Radius	51 mm
Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE)	Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix
Inside Diameter	2 inch	Vacuum Pressure Rating	737 mm-Hg
Cover Structure	Corrugated	Maximum Operating Temperature	82 °C
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Size	-32
Outside Diameter	64.5 mm
