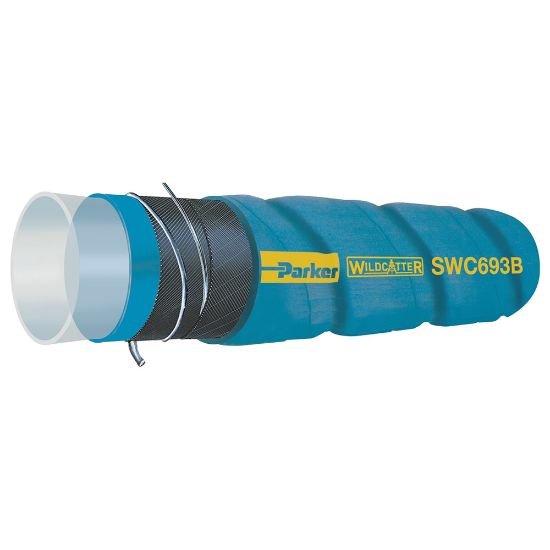

SWC693B-2000 - WILDCATTER® UHMWPE CORRUGATED CHEMICAL SUCTION HOSE

Wildcatter Oilfield UHMWPE Corrugated Chemical Suction Hose is designed for transfer of many industrial strength acids, chemicals and solvents in applications to 180°F and 250 psi

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	382 in stock

SKU SWC693B-2000

$24.72/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Blue
Hose I.D. (inch)	2	Outside Diameter	2.540 inch
Hose Reinforcement Material	Multiple Plies of Textile with Dual Wire Helix	Inside Diameter	50.8 mm
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Cover Structure	Corrugated
Maximum Operating Temperature	82 °C	Vacuum Pressure Rating	29 Inch-Hg
Size	-32	Media	Acids
Minimum Operating Temperature	-40 °C	Compatible Fitting	n/a
Weight	1.39 kg/m	Maximum Operating Pressure	250 psi
Nominal Hose Inside Diameter	50 mm	Hose Inner Tube Material	Ultra High Molecular Weight Polyethylene (UHMWPE) (UHMWPE)
Minimum Bend Radius	51 mm
