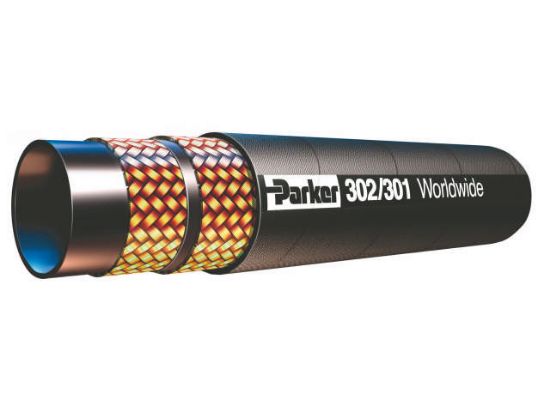

Picture of 302-24 - Worldwide Hydraulic Industry Standard Hose 1150-5800 PSI – 302 Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

302-24 - Worldwide Hydraulic Industry Standard Hose 1150-5800 PSI – 302 Hose

Parker’s 302 hose is a worldwide hydraulic industry standard hose manufactured to strict international quality specifications in order to provide consistency of performance.
Availability:
89 in stock
TOPEKA, KS62
Olivette, MO12
Springfield, MO10
Peoria, IL5
Partner Available:1057 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 302-24
$49.90/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (size)-24
Minimum Operating Temperature-40 °CMaximum Operating Temperature100 °C
Inside Diameter1-1/2 inchCover MaterialSynthetic Rubber
Hose Inner Tube MaterialSynthetic RubberHose Reinforcement Material2 Braids of Steel Wire
Nominal Hose Inside Diameter38 mmMediaPetroleum Hydraulic Fluids
Minimum Bend Radius500 mmWeight2.14 kg/m
Outside Diameter2.140 inchCompatible Fitting30 Series
Specifications MetUSCG HFMaximum Operating Pressure1300 psi
Pkg Qty50Inner Diameter1.5 Inch
UOMFTMaterialRubber
Pkg Qty/UOM50 FTWorking Pressure1300 PSI (90 bar)
Mating Fitting Series43, 30Parker GroupFluid Connector
Inch/MetricInchParker DivisionHose Products
Inner Diameter Inch/mmInchInner Diameter1.5 Inch
MaterialRubberWorking Pressure Range1000 to 1999 PSI (69 to 138 bar)
ApplicationHydraulicSeries302
Hose Pressure RangeMediumHose CategoryHydraulic Industry Standard
Mating End Fitting Series43, 30Distinct PropertiesWorldwide DIN
