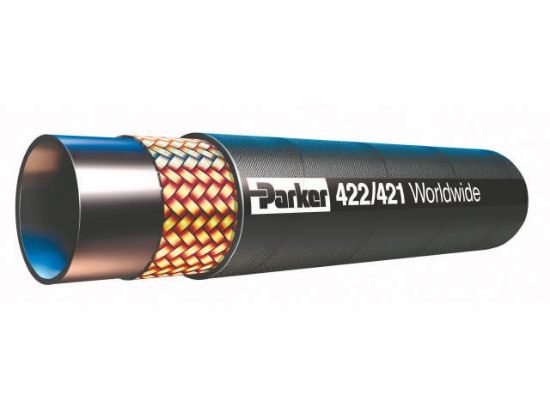

422-16 - Worldwide Hydraulic Industry Standard Hose 575-3250 PSI – 422 Hose

Parker’s 422 hose is a worldwide hydraulic industry standard hose manufactured to strict international specifications to offer customers consistency of performance combined with improved availability anywhere in the world.

Availability:	Backordered
Partner Available:	590 in stock

SKU 422-16

$16.86/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-16
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	100 °C
Inside Diameter	25 mm	Cover Material	Synthetic Rubber
Outside Diameter	36 mm	Hose Inner Tube Material	Synthetic Rubber
Hose Reinforcement Material	1 Braid of Steel Wire	Nominal Hose Inside Diameter	25 mm
Media	Petroleum Hydraulic Fluids	Weight	0.63 lb/ft
Minimum Bend Radius	300 mm	Specifications Met	USCG HF
Compatible Fitting	42 Series	Maximum Operating Pressure	8.8 MPa
Inner Diameter	1 Inch	UOM	FT
Material	Rubber	Pkg Qty/UOM	135 FT
Pkg Qty	135	Mating Fitting Series	43, 42
Working Pressure	1275 PSI (90 bar)	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	1 Inch	Inner Diameter Inch/mm	Inch
Material	Rubber	Working Pressure Range	1000 to 1999 PSI (69 to 138 bar)
Application	Hydraulic	Hose Pressure Range	Medium
Hose Category	Hydraulic Industry Standard	Distinct Properties	Worldwide DIN
Series	422	Mating End Fitting Series	43, 42
