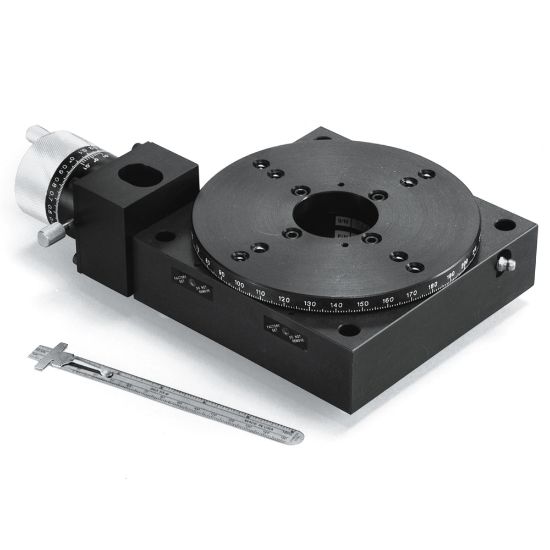

Picture of Worm Gear Driven Manual Rotary Stages - 10,20,30000 Series - 10000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Worm Gear Driven Manual Rotary Stages - 10,20,30000 Series - 10000

The 10000/20000/30000-series of of crossed roller bearing guided worm-driven manual rotary stages offer 360 degrees of continuous positioning with a vernier readable to 6 arc minutes. Suitable for payloads of up to 200 lbs
Availability:
Backordered
SKU 10000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEATypeEnglish Model / 2.75" Dia Top / with 0.25" Aperture
Payload (lbs)25DivisionElectronic Motion and Controls Division
Width120.7 mmBearing TypeCross Roller
Product TypeRotary StageLoad Capacity150 to 499 lb
Number of Axes1Product Series10,20,30000 Series
Mounting Option2.75" Dia Top with 0.25" ApertureDrive Train TypeVernier, 6 arc-min
Maximum Travel Angle360 °
