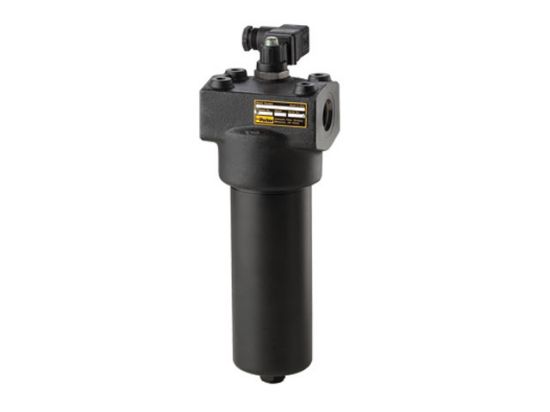

WPF2 Series High Pressure Filter - WPF205QEVM2KY121

Name: WPF2 Series High Pressure Filter - WPF205QEVM2KY121
SKU: WPF205QEVM2KY121

WPF2 Series Hydraulic and Lube Oil High Pressure Filter

Availability:

Backordered

SKU WPF205QEVM2KY121

$642.26

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Element Length	Single
Options	No Option	Nominal Filter Rating	5 micron
Operating Temperature	-15F to 250F (-26C to 121C)	Seals	Fluorocarbon
Indicator Type	Visual - Automatic Reset	Bypass	50 PSI (3.5 bar)
Max Pressure - Non-Fatigue MAOP	7000 psi (483 bar)	Max Pressure - Fatigue MAOP	6000 psi (414 bar)
Port	3/4 Flange face - SAE Code 62	Nominal Flow Rating	25 GPM (95 LPM)
Replacement Element	941033Q	Parker Group	Filtration
Parker Division	Hydraulic Filter	Element Length	Single
Filter Media Type	Ecoglass III	Options	No Option
Filter Media Code	05QE	Nominal Filter Micron Rating	5 micron
Operating Temperature	-15F to 250F (-26C to 121C)	Indicator Type	Visual - Automatic Reset
Bypass	50 PSI (3.5 bar)	Seals	Fluorocarbon
Filter Type	High Pressure Filter	Max Pressure - Non-Fatigue MAOP	7000 PSI (483 bar)
Max Pressure - Fatigue MAOP	6000 PSI (414 bar)	Series	WPF2
Port	3/4 Flange face - SAE Code 62	Port Type	Flange face - SAE Code 62
Nominal Flow Rating	25 GPM (95 LPM)

Product resources

WPF Series (PDF)
