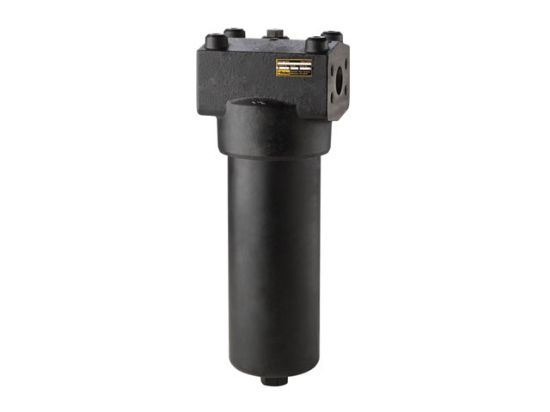

WPF5 Series High Pressure Filter - WPF502QEVM2KY241

Name: WPF5 Series High Pressure Filter - WPF502QEVM2KY241
SKU: WPF502QEVM2KY241

WPF5 Series Hydraulic and Lube Oil High Pressure Filter

Availability:

Backordered

SKU WPF502QEVM2KY241

$1,620.22

Products specifications

Attribute name	Attribute value
UOM	EA	Max Pressure - Fatigue MAOP	6000 psi (414 bar)
UOM	EA	Max Pressure - Non-Fatigue MAOP	7000 psi (483 bar)
Port	1 1/2 Flange face - SAE Code 62	Bypass	50 PSI (3.5 bar)
Element Length	Single	Options	No Option
Replacement Element	941041Q	Nominal Flow Rating	120 GPM (455 LPM)
Indicator Type	Visual - Automatic Reset	Seals	Fluorocarbon
Pkg Qty	1	Nominal Filter Rating	2 micron
Operating Temperature	-15F to 250F (-26C to 121C)	Indicator Type	Visual - Automatic Reset
Filter Type	High Pressure Filter	Filter Media Type	Ecoglass III
Options	No Option	Parker Group	Filtration
Seals	Fluorocarbon	Port Type	Flange face - SAE Code 62
Parker Division	Hydraulic Filter	Max Pressure - Non-Fatigue MAOP	7000 PSI (483 bar)
Max Pressure - Fatigue MAOP	6000 PSI (414 bar)	Bypass	50 PSI (3.5 bar)
Series	WPF5	Element Length	Single
Nominal Flow Rating	120 GPM (455 LPM)	Operating Temperature	-15F to 250F (-26C to 121C)
Nominal Filter Micron Rating	2 micron	Filter Media Code	02QE
Port	1 1/2 Flange face - SAE Code 62

Product resources

WPF Series (PDF)
