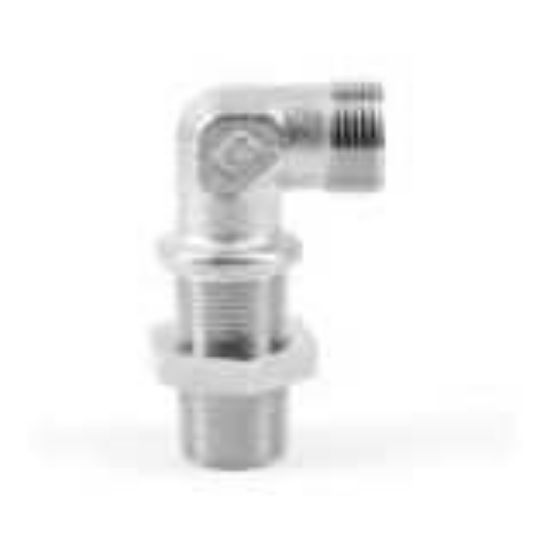

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

WSV35LOMDCF

Availability:	Backordered Estimated Lead Time: 99 days
Partner Available:	Backordered

SKU WSV35LOMDCF

$216.09/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

The main function of Ermeto DIN tube to tube high pressure hydraulic tube fittings is to connect different numbers of tubes. This broad range of Ermeto DIN tube to tube high pressure hydraulic tube fittings, types G, GR, W, T, TR, K, SV, up to WSV is available in steel and in a stainless steel version. Depending on the specific application, the fittings can be delivered with cutting ring (EO-PSR or DPR) or elastomeric seal (EO-2).

Applications:

Suitable for general hydraulic applications.

Features:

Steel and Stainless steel fittings have a high corrosion resistance to aggressive media and environmental influences. These features extend the range of applications.

High pressure: Ermeto DIN tube to tube high pressure hydraulic tube fittings can be used in applications of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications.

Markets:

Products specifications

Attribute name	Attribute value
UOM	EA	Series	Light
Tube Outside Diameter 1	35 MM	Shape	Bulkhead Elbow
Connection Type 1	24° Cone End	Tube Outside Diameter 2	35 MM
Connection Type 2	24° Cone End	Parker Group	Fluid Connector
Parker Division	Tube Fitting
