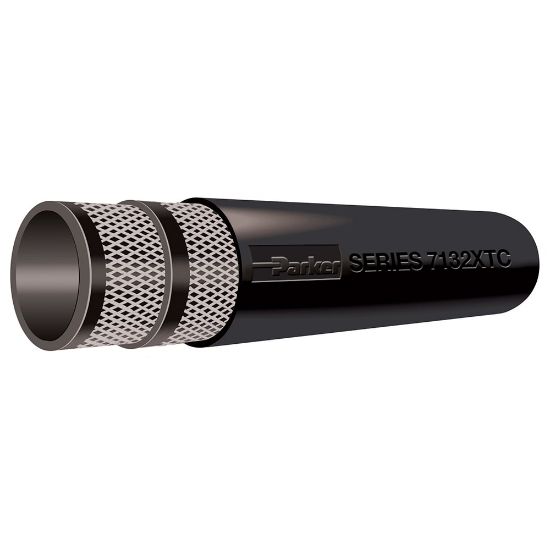

7132XTC-1000125 - X-TREME™ Low Temperature Liquid Petroleum Gas LPG Hose, Series 7132XTC

X-treme Low Temperature Liquid Petroleum Gas LPG Hose is designed for delivery, supply and transfer of propane in commercial and industrial applications to -65°F and 350 psi, Series 7132XTC

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU 7132XTC-1000125

$18.58/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Standard Pack Qty (ft)	1 x 125	Maximum Working Pressure (psi)	350
Minimum Bend Radius	8 inch	Package Type	Carton
Outside Diameter	1.5 inch	Cover Color	Black
Inside Diameter	1 inch	Minimum Operating Temperature	-53 °C
Hose Inner Tube Material	Black	Hose Reinforcement Material	4 Plies of Textile
Weight	0.63 lb/ft	Cover Material	Chloroprene Rubber (CR)
Maximum Operating Temperature	82 °C	Maximum Operating Pressure	24.1 bar
Compatible Fitting	7661 Series	Cover Structure	Perforated
Media	LPG	Specifications Met	CSA 8.1, Type I
