*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

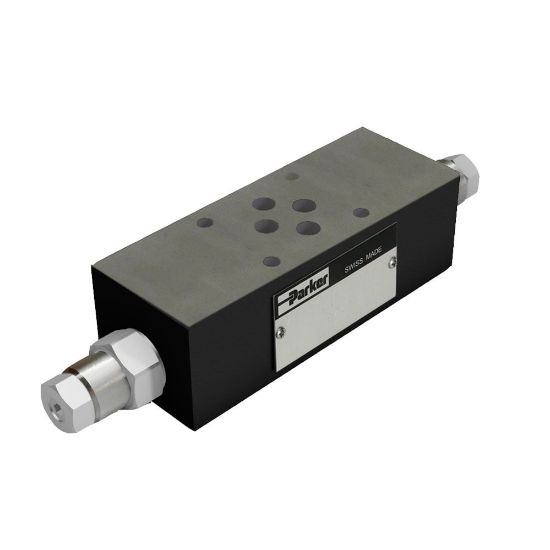

ZNSB022S0D5

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU ZNSB022S0D5

$1,955.52/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Function	Load Holding, Pressure Control in B
Flow Rate	120 lpm	Port Connection	NG10 / CETOP 05
Operation Type	Pilot	For Fluid Type	Water Glycol
Pressure Control Range	70 - 175 bar	Actuation Type	Oil Pilot
Product Series	Counterbalance valve	Seal Material	FPM
Maximum Operating Temperature	60 °C	Maximum Pressure Setting	70 - 175 bar
Mounting Option	Sandwich Plate	Adjustment Mechanism	Hexagon Screw with Lock Nut
