ZRDBA02S0D5

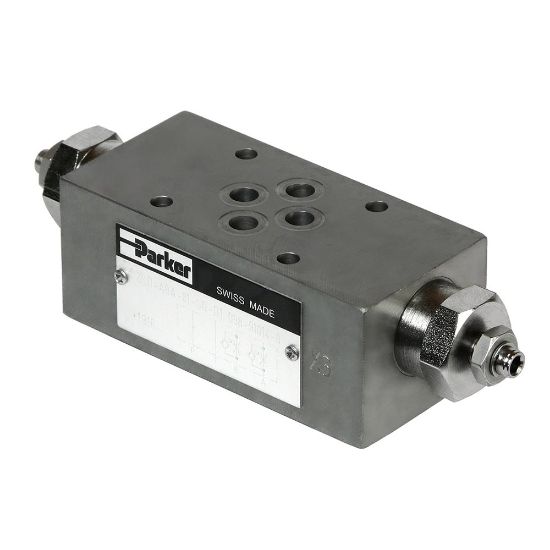

Parker ZRDBA02S0D5 | Check Valve | Seal Material FPM | Function Meter-Out Contol In B | Port Connection NG10 / CETOP 05

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU ZRDBA02S0D5

Throttle check valves series ZRD in size NG06 (CETOP 03) and NG10 (CETOP 05) are part of Parker's complete range of sandwich plate valves. Designed for maximum flow, they ensure the easy configuration of conventional stack systems.

The throttle check function can be located in port A or B as well as in A + B. Meter-in or meter-out functionality can be selected by model code. A low flow/high resolution version in NG06 for sensitive shifting time adjustment of pilot operated directional control valves is available on request.

Features:

Compact, proven design that represents our long-term experience in hydraulics - increases reliability
High flow capacity - optimum efficiency in relation to valve size
Various functional arrangements - suitable for almost every application
Short delivery time - no warehousing necessary
Available in two sizes:

ZRD01 - NG06 (CETOP 03)

ZRD02 - NG10 (CETOP 05)

Applications:

Suitable for general hydraulic applications
Machine tools

Markets:

Industrial | Machine tools

Products specifications

Attribute name	Attribute value
UOM	EA	Function	Meter-Out Contol In B
Port Connection	NG10 / CETOP 05	Parker Group	Fluid Connector
Parker Division	Fluid System Connector	Seal Material	FPM
