100R19 Hose - 594TJ

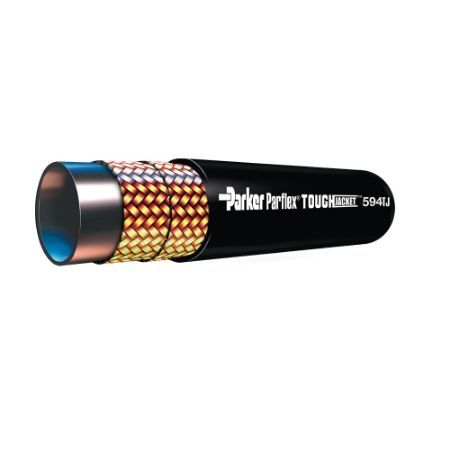

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker 594TJ medium pressure hydraulic hose features the TOUGHJACKET Polyurethane cover for best abrasion resistance and is rated to 4,000 psi constant pressure for applications in the construction industry, especially for those working with telescoping boom applications requiring a durable and light weight bonded assembly solution. When bonded, these thermoplastic hose assemblies simplify the installation process, allow for a smooth operation and improve the overall strength and stability of the hose. Parker 594TJ hose assemblies are SAE 100R19 compliant and feature four-spiral wire hose performance in a high tensile two-wire braid construction.
Markets:
• Mobile Equipment
• Agricultural Equipment
• Construction Equipment
• Transportation
Features/Benefits:
• TOUGHJACKET Polyurethane cover for best abrasion resistance
• Low length change under pressure makes it an ideal solution for boom or cable track applications where long lengths are required
• Consistent long lengths
• Lighter weight than comparable 100R19 hose
• 4,000 psi constant pressure
• Excellent flexibility
• Superior bend radius
• Available in twin-line or multi-line bonded hose with up to 10 configurations
Applications:
• Medium pressure hydraulic applications
• Use for industrial medium pressure hydraulic applications with petroleum, water base and synthetic hydraulic fluids, gases and some solvents and chemical solutions
Certifications/Compliance:
• Meets/Exceeds SAE 100R19
• MSHA compliant cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Markets:
• Mobile Equipment
• Agricultural Equipment
• Construction Equipment
• Transportation
Features/Benefits:
• TOUGHJACKET Polyurethane cover for best abrasion resistance
• Low length change under pressure makes it an ideal solution for boom or cable track applications where long lengths are required
• Consistent long lengths
• Lighter weight than comparable 100R19 hose
• 4,000 psi constant pressure
• Excellent flexibility
• Superior bend radius
• Available in twin-line or multi-line bonded hose with up to 10 configurations
Applications:
• Medium pressure hydraulic applications
• Use for industrial medium pressure hydraulic applications with petroleum, water base and synthetic hydraulic fluids, gases and some solvents and chemical solutions
Certifications/Compliance:
• Meets/Exceeds SAE 100R19
• MSHA compliant cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Inside Diameter | Design Factor | Maximum Operating Temperature | Minimum Operating Temperature | Outside Diameter | Hose Cover Type | Media | Size | Hose Inner Tube Material | Minimum Bend Radius | Cover Material | Specifications Met | Hose Reinforcement Material | Maximum Operating Pressure | Weight | Compatible Fitting |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 594TJ-10 | Backordered | Backordered | $10.95/foot | FT | 5/8 | 5/8 | 4:1 | 212 | -40 | 0.490 | ToughJACKET™ | Lubricants (Oils) | -10 | Copolyester | 4 | Polyurethane | MSHA | Braid of High Tensile Steel Wire | 280 | 0.59 | 43 Series | |
| 594TJ-12 | Backordered | Backordered | $19.98/foot | FT | 3/4 | 19 mm | 4:1 | 100 °C | -40 °C | 16.3 mm | ToughJACKET™ | Lubricants (Oils) | -12 | Copolyester | 4-3/4 inch | Polyurethane | MSHA | Braid of High Tensile Steel Wire | 4061 psi | 1.07 kg/m | 43 Series | |
| 594TJ-4 | Backordered | 357 in stock | $5.36/foot | FT | 1/4 | 1/4 inch | 4:1 | 100 °C | -40 °F | 21.5 mm | ToughJACKET™ | Petroleum Hydraulic Fluids | -4 | Copolyester | 1-3/4 inch | Polyurethane | MSHA | Braid of High Tensile Steel Wire | 4061 psi | 0.19 kg/m | 56 Series | |
| 594TJ-6 | Backordered | 681 in stock | $5.84/foot | FT | 3/8 | 10 mm | 4:1 | 100 °C | -40 °C | 26.4 mm | ToughJACKET™ | Lubricants (Oils) | -6 | Copolyester | 2-1/2 inch | Polyurethane | SAE 100R19 | Braid of High Tensile Steel Wire | 4061 psi | 0.28 kg/m | 56 Series | |
| 594TJ-8 | Backordered | 74 in stock | $7.52/foot | FT | 1/2 | 1/2 inch | 4:1 | 100 °C | -40 °C | 29.7 mm | ToughJACKET™ | Water | -8 | Copolyester | 3-1/2 inch | Polyurethane | MSHA | Braid of High Tensile Steel Wire | 4061 psi | 0.39 lb/ft | 43 Series |
