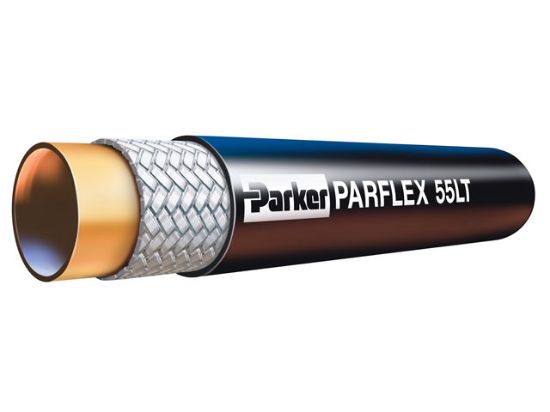

55LT-3 - 100R7 Hose - 55LT

Parker's Low Temperature Hydraulic Hose maintains superior flexibility in cold temperatures, meets SAE 100R7, and is designed for construction and agriculture equipment in cold climates.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	283 in stock

SKU 55LT-3

$4.96/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Hose Style	Single	Media	Air
Minimum Bend Radius	19 mm	Design Factor	4:1
Maximum Operating Temperature	100 °C	Compatible Fitting	56 Series
Hose Inner Tube Material	Polyamide (PA)	Hose Reinforcement Material	Fiber
Weight	0.05 lb/ft	Size	-3
Inside Diameter	3/16 inch	Specifications Met	SAE 100R7
Outside Diameter	10.9 mm	Cover Material	Copolyester
Minimum Operating Temperature	-57 °C	Maximum Operating Pressure	22.4 MPa
Product Style	Single Line	Pkg Qty	250
Pkg Qty/UOM	250 FT	UOM	FT
Working Pressure	3250 PSI (220 bar)	Material	Thermoplastic
Mating Fitting Series	55	Inner Diameter	0.1875 Inch
Parker Group	Fluid Connector	Inch/Metric	Inch
Inner Diameter Inch/mm	Inch	Parker Division	Parflex
Working Pressure Range	3000 to 3999 PSI (207 to 276 bar)	Hose Pressure Range	Medium
Material	Thermoplastic	Specification	SAE 100R7
Mating Fitting Series	55	Inner Diameter	0.1875 Inch
Series	55LT	Distinct Properties	Low Tempurature
