510R-3 - 100R7 Refrigerant Hose - 510R

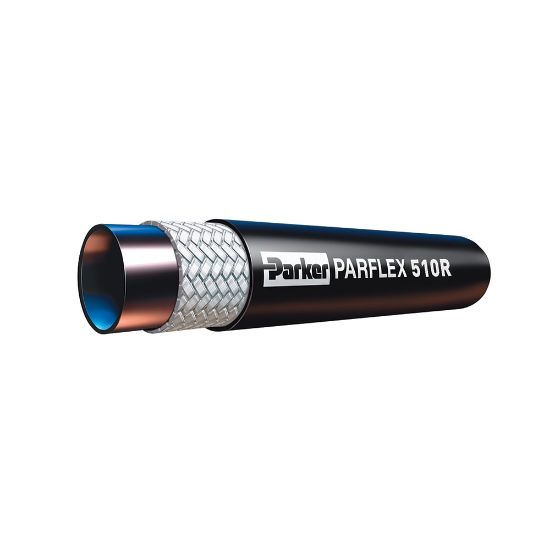

Parflex 510R hose is a nylon core refrigerant hose compatible with common compressor oils and refrigeration media.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	250 in stock

SKU 510R-3

$6.82/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Minimum Operating Temperature	-40 °C
Maximum Operating Pressure	207 bar	Compatible Fitting	56 Series
Hose Inner Tube Material	Polyamide (PA)	Hose Reinforcement Material	Fiber
Maximum Operating Temperature	121 °C	Minimum Bend Radius	51 mm
Weight	0.05 lb/ft	Inside Diameter	5 mm
Media	Coolants	Design Factor	4
Cover Material	Nylon Blend	Outside Diameter	10.7 mm
Specifications Met	SAE 100R7, ANSI/UL 207 and ANSI/UL 1963 listed with 56-series fittings
