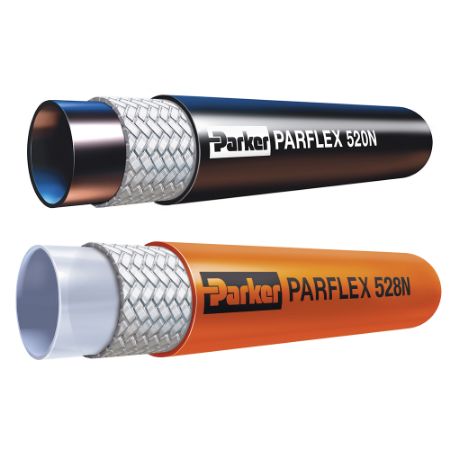

100R8 Hydraulic Hose – 520N/528N
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 520N/528N Thermoplastic Hydraulic Hose features optimum hose performance in a 100R8 hose but with a lighter weight and smaller O.D. than an 100R2 hose. It replaces 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required. This flexible hydraulic hose is available in single, twin-line and multi-line constructions and features a smaller bend radius than 3TR8/3800 hose. Offering superior features, such as a reduced weight and improved flexing capabilities, the Parflex 520N/528N High Pressure Hose combines a variety of advantages to fulfill application requirements in hydraulic equipment, pneumatic circuits and fluid handling applications.
Markets:
• Machine Tool
• Industrial
• Industrial Pneumatic
• Construction
• Mobile Equipment
Features/Benefits:
• Lighter and smaller O.D. than 100R2 for ease of assembly
• Available as a bonded hose assembly.
• Fast response
• Working pressure up to 5,000 psi
Applications:
• Hydraulic and pneumatic circuits and systems
• Ideal in hot water applications
•Nitrogen Gas
• Material Handling Equipment
• Machine tool
• Construction Equipment
Certifications/Compliance:
• Meets/exceeds SAE 100R8
• 520N MSHA accepted
• 528N meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
Technical Specifications:
• Twin and multi-line designs available
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Markets:
• Machine Tool
• Industrial
• Industrial Pneumatic
• Construction
• Mobile Equipment
Features/Benefits:
• Lighter and smaller O.D. than 100R2 for ease of assembly
• Available as a bonded hose assembly.
• Fast response
• Working pressure up to 5,000 psi
Applications:
• Hydraulic and pneumatic circuits and systems
• Ideal in hot water applications
•Nitrogen Gas
• Material Handling Equipment
• Machine tool
• Construction Equipment
Certifications/Compliance:
• Meets/exceeds SAE 100R8
• 520N MSHA accepted
• 528N meets SAE J517 for less than 50 micro-amps leakage under 75,000 volts per foot
Technical Specifications:
• Twin and multi-line designs available
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Hose Type | Weight | Inside Diameter | Size | Compatible Fitting | Hose Reinforcement Material | Minimum Operating Temperature | Design Factor | Minimum Bend Radius | Outside Diameter | Media | Maximum Operating Pressure | Hose Inner Tube Material | Cover Material | Specifications Met | Maximum Operating Temperature | Product Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 520N-3 | 1355 in stock | 2070 in stock | $6.29/foot | FT | 3/16 | Standard | 0.05 lb/ft | 5 mm | -3 | 56 Series | Aramid Fiber | -40 °C | 4:1 | 38 mm | 10.9 mm | Welding Gases (Nitrogen) | 5000 psi | Polyamide (PA) | Polyurethane | MSHA | 100 °C | Standard | |
| 520N-4 | 1340 in stock | 8684 in stock | $7.04/foot | FT | 1/4 | Standard | 0.07 lb/ft | 6 mm | -4 | 56 Series | Aramid Fiber | -40 °C | 4:1 | 2 inch | 0.510 inch | Water | 34.5 MPa | Polyamide (PA) | Polyurethane | DNV GL | 212 °F | Standard | |
| 520N-5 | 7 in stock | 920 in stock | $9.42/foot | FT | 5/16 | Standard | 0.08 lb/ft | 5/16 inch | -5 | 56 Series | Aramid Fiber | -40 °F | 4:1 | 2.5 inch | 14.5 mm | Welding Gases (Nitrogen) | 310 bar | Polyamide (PA) | Polyurethane | DNV GL | 100 °C | Standard | |
| 520N-6 | 1161 in stock | 7145 in stock | $8.39/foot | FT | 3/8 | Standard | 0.08 lb/ft | 3/8 inch | -6 | 56 Series | Aramid Fiber | -40 °C | 4:1 | 64 mm | 16.5 mm | Air | 4000 psi | Polyamide (PA) | Polyurethane | MSHA | 212 °F | Standard | |
| 520N-8 | 1437 in stock | 5104 in stock | $10.75/foot | FT | 1/2 | Standard | 0.14 lb/ft | 13 mm | -8 | 56 Series | Aramid Fiber | -40 °F | 4:1 | 102 mm | 0.810 inch | Petroleum Hydraulic Fluids | 24.1 MPa | Polyamide (PA) | Polyurethane | DNV GL | 100 °C | Standard | |
| 528N-4 | Backordered | 1730 in stock | $8.74/foot | FT | 1/4 | Non Conductive | 0.07 lb/ft | 1/4 inch | -4 | 56 Series | Aramid Fiber | -40 °C | 4:1 | 2 inch | 0.510 inch | Air | 34.5 MPa | Polyamide (PA) | Polyurethane | SAE 100R8 | 212 °F | Non-Conductive | |
| 528N-6 | 43 in stock | 2219 in stock | $9.52/foot | FT | 3/8 | Non Conductive | 0.08 lb/ft | 10 mm | -6 | 56 Series | Aramid Fiber | -40 °C | 4:1 | 2-1/2 inch | 16.5 mm | Petroleum Hydraulic Fluids | 4000 psi | Polyamide (PA) | Polyurethane | DNV GL | 100 °C | Non-Conductive | |
| 528N-8 | 188 in stock | 2809 in stock | $12.83/foot | FT | 1/2 | Non Conductive | 0.20 kg/m | 1/2 inch | -8 | 56 Series | Aramid Fiber | -40 °F | 4:1 | 102 mm | 0.810 inch | Water | 3500 psi | Polyamide (PA) | Polyurethane | SAE J517 (for less than 50 micro-amps leakage under 75000 volts per ft.) | 212 °F | Non-Conductive |
