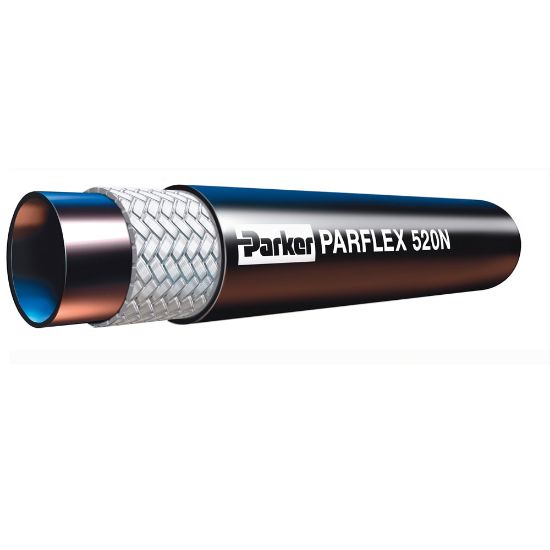

520N-3 - 100R8 Hydraulic Hose – 520N/528N

Name: 520N-3 - 100R8 Hydraulic Hose – 520N/528N
SKU: 520N-3
Price: 6.29 USD
Availability: InStock

Parker's 520N/528N Thermoplastic Hydraulic Hose features optimum hose performance in an SAE 100R8 hose. Available as a bonded hose assembly.

Availability:

1355 in stock

TOPEKA, KS	662
Kansas City, KS	235
Peoria, IL	194
Wichita, KS	110
Decatur, IL	103
Springfield, MO	50

Partner Available:

2070 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 520N-3

$6.29/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Hose Type	Standard	Weight	0.05 lb/ft
Inside Diameter	5 mm	Size	-3
Compatible Fitting	56 Series	Hose Reinforcement Material	Aramid Fiber
Minimum Operating Temperature	-40 °C	Design Factor	4:1
Minimum Bend Radius	38 mm	Outside Diameter	10.9 mm
Media	Welding Gases (Nitrogen)	Maximum Operating Pressure	5000 psi
Hose Inner Tube Material	Polyamide (PA)	Cover Material	Polyurethane
Specifications Met	MSHA	Maximum Operating Temperature	100 °C
Product Style	Standard
