*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

134178

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 134178

$2,023.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

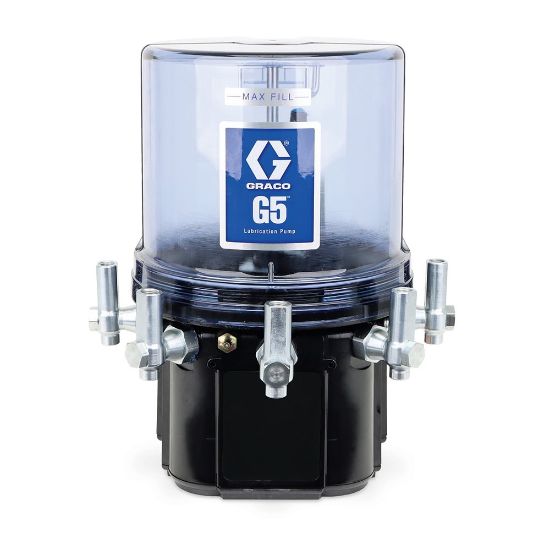

Greater profit is within reach with Graco G5 pumps. Equipped with five pump elements for more versatile and simple grease operations, the G5 has been designed specifically for the harsh demands of fracking operations.

Features

Five Pump Elements
Flexible Power Options
Optional Pressure Relief Valves
Reservoir Wiper Arm
Auto-Fill Shutoff (AFSO) Option
Robust Reservoir

Applications

Off-Road Equipment

Products specifications

Attribute name	Attribute value
UOM	EA	Number of Machine Count Sensor Inputs	1
Alarm Relay Inductive Maximum Switching Capacity	25 VA;30 W	Series	Standard
Alarm Relay Resistive Maximum Operating Current	3 A	Alarm Relay Inductive Maximum Operating Current	1.5 A
Weight	13.3 lb	Maximum Working Pressure	4250 psi
Alarm Relay Resistive Maximum Switching Capacity	50 VA;60 W	Number of Pressure and Cycle Sensor Inputs	3
Minimum Voltage	18 VDC	Maximum Fill Inlet Pressure	5000 psi
Minimum Operating Temperature	-40 deg F	Number of Pump Elements	5
Fluid Outlet Size	0.25 Inch	Alarm Relay Resistive Rated Load	2 A
Maximum Voltage	30 VDC	Number of Outlets	5
Alarm Relay Inductive Maximum Operating Voltage	220 VDC	Fluid Outlet Thread Type	NPSF
Voltage	24 VDC	Overall Depth	11.18 Inch
Fluid Inlet Thread Type	NPT	Fluid Outlet Thread Gender	Female
Alarm Relay Inductive Minimum Permissible Load	10 A;10m VDC	Model	G5
Maximum Operating Temperature	185 deg F	Pump Output with 1 Spacer	0.1 Cubic Inch/min
Overall Width	9.25 Inch	Pump Output with 2 Spacers	0.06 Cubic Inch/min
Maximum NLGI Grade	#2	IP Rating	IP69K
Pump Output with 0 Spacers	0.16 Cubic Inch/min	Overall Height	14.5 Inch
Power Connection Type	5 Wire CPC	Reservoir Size	1.06 gal
Fluid Inlet Thread Gender	Female	Control Options	Standard
Minimum cST Grade	40 cST	Alarm Relay Inductive Rated Load	1 A
Maximum Run Time	30 min	Maximum Fluid Output Pressure	4250 psi
