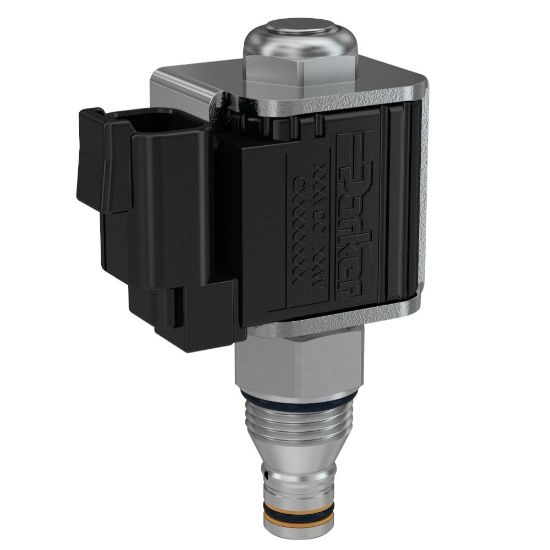

Picture of 2 Way Poppet Type Bi-Directional Solenoid Valve - GS027701N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2 Way Poppet Type Bi-Directional Solenoid Valve - GS027701N

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).
Availability:
Backordered
SKU GS027701N
$148.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
ConfigurationNormally OpenMaximum Inlet Pressure Rating3000 PSI, 210 BAR
Actuation TypeElectricalWire Mesh Screen IncludedYes
Flow Rate0.45 GAL/MIN, 1.7 L/MINActuation TypeElectrical
Maximum Operating Pressure3000 psiSeal MaterialNitrile
Connection Sizen/aSpecifications MetN/A
Body Materialn/aDivisionHydraulic Systems Division
Flow DirectionBi-directionalMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature-30 °FFunction2-Way
Override Functionalityn/aCavity SizeC08-2
Wire Mesh Screen IncludedYesMaximum Inlet Pressure Rating3000 psi
Operation TypeSolenoid OperatedInstallation Torque30 Nm
Coil Nut Tightening Torque4.1 NmConfigurationNormally Open
Maximum Operating Temperature+250 °FFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
For Fluid TypeMineral-based or synthetic hydraulic fluidsValve MaterialAll parts steel. All operating parts hardened steel
Operating Temperature-30 to +250 °FMounting TypeScrew in cartridge valve
Coil Type1/2" Super CoilLeak Rate5 drops/min
Input Voltage85% of rated voltage at 72°F (20°C) minApplicationMobile Hydraulics, Industrial Hydraulics
Bore DiameterN/ASeat MaterialSteel
Flange Face TypeN/AANSI Flange ClassN/A
Weight0.31 lbFlow Rate1.7 L/min
Response Time10 msMaximum Flow Rate1.7 L/min
