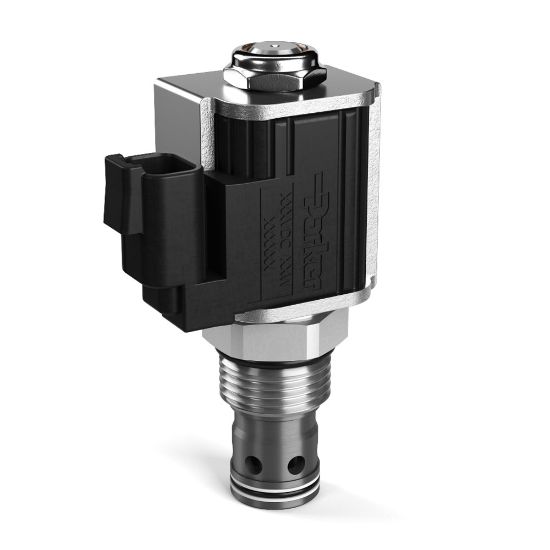

Picture of 2 Way Poppet Type Solenoid Valve - DSH121CHT

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2 Way Poppet Type Solenoid Valve - DSH121CHT

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).
Availability:
Backordered
SKU DSH121CHT
$192.70
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
ConfigurationNormally ClosedMaximum Inlet Pressure Rating5000 PSI, 350 BAR
Actuation TypeElectrical, ManualWire Mesh Screen IncludedNo
Flow Rate24 GAL/MIN, 90 L/MINBody Materialn/a
Maximum Operating Pressure5000 psiDivisionHydraulic Systems Division
Flow DirectionSide to Nose (2-1)Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature-30 °FFunction2-Way
Weight0.29 kgMaximum Inlet Pressure Rating350 bar
Cavity SizeC12-2ConfigurationNormally Closed
Actuation TypeElectrical, ManualMaximum Operating Temperature+121 °C
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4For Fluid TypeMineral-based or synthetic hydraulic fluids
Operation TypeSolenoid operated, Manually operatedValve MaterialAll parts steel. All operating parts hardened steel
Operating Temperature-30 to +250 °FWire Mesh Screen IncludedNo
Mounting TypeScrew in cartridge valveLeak Rate5 drops/min
Input Voltage85% of rated voltage at 72°F (20°C) minOverride FunctionalityPush and Twist
Coil Nut Tightening Torque5-7 lb-ftFree Reverse FlowNo
Adjustment MechanismN/ACoil Type5/8" Super Coil
Seal MaterialNitileFlow Rate24 Gal/min
Response Time60 msMaximum Flow Rate90 L/min
Installation Torque92-96 lb-ft
