222095

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 222095

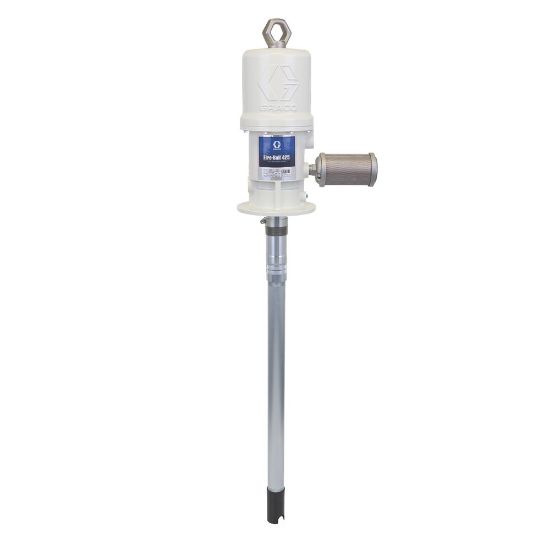

With a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!

Features

Durable Casting
Fewer Repairs
Extended Seal Life
Reduce Downtime
Superior Sealing
Reduced Icing
Corrosion-Resistant

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Series	425
Maximum Working Pressure	1800 psi	Cycles Per Gallon	19.6
Weight	28.7 lb	Maximum Continuous Cycle Rate	66 CPM
Fluid Outlet Size	3/4 Inch	Fluid Outlet Thread Gender	Female
Sound Pressure Level	78 dB(A)	Air Inlet Thread Gender	Female
Maximum Air Inlet Pressure	180 psi	Air Inlet Size	0.5 Inch
Fluid Inlet Thread Gender	Female	Fluid Inlet Size	1-1/2 Inch
Air Inlet Thread Type	NPT	Pump Ratio	10:1
Fluid Outlet Thread Type	NPT	Maximum Intermittent Cycle Rate	66 CPM
Seal Material	Polyurethane with Nitrile Spreader	Fluid Inlet Thread Type	NPT
Model	Fire-Ball	Air Motor Effective Diameter	4.25 Inch
