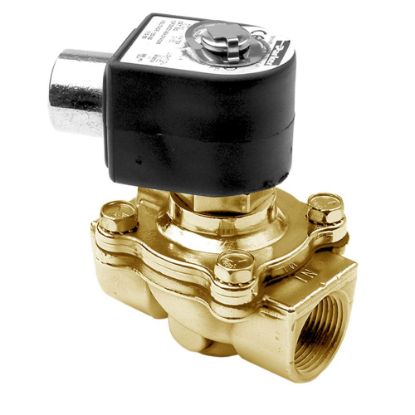

22/23 Series - General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Gold Ring legacy product has a rich history in industrial and commerical applications.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | Port Size | Coil Type | Body Material | Seal Material | Media | Function | Port Type | Installation | Orifice Size | Input Voltage | Actuation Type | Insulation Class | Power Consumption | Specifications Met | Valve Configuration | Main Flow Coefficient | Ingress Protection Rating | Maximum Fluid Temperature | Preventive Maintenance Kit | Maximum Ambient Temperature | Maximum Pressure Differential | Minimum Pressure Differential | Port Size | Media | Function | Coil Type | Port Type | Body Material | Input Voltage | Seal Material | Actuation Type | Power Consumption | Maximum Fluid Temperature | Maximum Pressure Differential | Minimum Pressure Differential | Installation | Orifice Size | Insulation Class | Specifications Met | Valve Configuration | Main Flow Coefficient | Ingress Protection Rating | Preventive Maintenance Kit | Maximum Ambient Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06F22C2140AAF | Backordered | Backordered | $112.10/each | EA | 3/8 | Requires Coil from Chart 1 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 6.0 | N/A | 2 Way | 3.0 | N/A | 180.0 | 06F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | 3/8 inch | General Purpose | Normally Closed | Requires Coil from Chart 1 | NPT | Brass | Pressure Vessel Only | NBR | Internally Piloted | 6.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | N/A | N/A | 2 Way | 3.0 Cv | N/A | 06F22C2140AAFR | 77.0 °F | |
| 06F22C2140AAF4C05 | Backordered | Backordered | $181.31/each | EA | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 11.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 180.0 | 06F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | 3/8 inch | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 120/60, 110/50 VAC | NBR | Internally Piloted | 11.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140AAFR | 77.0 °F | |
| 06F22C2140AAFPH05 | Backordered | 2 Limited Stock | $182.96/each | EA | 3/8 | DIN 43650A / ISO 4400 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 180.0 | 06F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | 3/8 inch | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | NPT | Brass | 120/60, 110/50 VAC | NBR | Internally Piloted | 6.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140AAFR | 77.0 °F | |
| 06F22C2140ADF | Backordered | 2 Limited Stock | $112.02/each | EA | 3/8 | Requires Coil from Chart 5 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 16.0 | N/A | 2 Way | 3.0 | N/A | 175.0 | 06F22C2140ADFR | 130.0 | 300.0 | 5.0 | 3/8 inch | General Purpose | Normally Closed | Requires Coil from Chart 5 | NPT | Brass | Pressure Vessel Only | NBR | Internally Piloted | 16.0 W | 175.0 °F | 300.0 psi | 5.0 psi | IOM 7321 | 5/8 inch | N/A | N/A | 2 Way | 3.0 Cv | N/A | 06F22C2140ADFR | 130.0 °F | |
| 06F22C2140ADF4C05 | Backordered | Backordered | $185.16/each | EA | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 11.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 175.0 | 06F22C2140ADFR | 130.0 | 300.0 | 5.0 | 3/8 inch | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 120/60, 110/50 VAC | NBR | Internally Piloted | 11.0 W | 175.0 °F | 300.0 psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140ADFR | 130.0 °F | |
| 06F22C2140ADFPH05 | Backordered | Backordered | $185.73/each | EA | 3/8 | DIN 43650A / ISO 4400 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 16.0 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 175.0 | 06F22C2140ADFR | 130.0 | 300.0 | 5.0 | 3/8 inch | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | NPT | Brass | 120/60, 110/50 VAC | NBR | Internally Piloted | 16.0 W | 175.0 °F | 300.0 psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140ADFR | 130.0 °F | |
| 06F23C2140ACF | Backordered | 2 Limited Stock | $128.90/each | EA | 3/8 | Requires Coil from Chart 4 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Direct Lift | N/A | 11.0 | N/A | 2 Way | 3.0 | N/A | 180.0 | 06F23C2140ACFR | 130.0 | 150.0 | 0.0 | 3/8 inch | General Purpose | Normally Closed | Requires Coil from Chart 4 | NPT | Brass | Pressure Vessel Only | NBR | Direct Lift | 11.0 W | 180.0 °F | 150.0 psi | 0.0 psi | IOM 7321 | 5/8 inch | N/A | N/A | 2 Way | 3.0 Cv | N/A | 06F23C2140ACFR | 130.0 °F | |
| 06F23C2140ACF4C05 | Backordered | Backordered | $201.65/each | EA | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Direct Lift | Class F | 11.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 180.0 | 06F23C2140ACFR | 130.0 | 150.0 | 0.0 | 3/8 inch | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 120/60, 110/50 VAC | NBR | Direct Lift | 11.0 W | 180.0 °F | 150.0 psi | 0.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F23C2140ACFR | 130.0 °F | |
| 06F23C2340A3FPH80 | Backordered | Backordered | $245.40/each | EA | 3/8 | DIN 43650A / ISO 4400 | BRASS | EPDM | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24.0 | Direct Lift | Class F | 11.5 | UL, CSA Recognized General Purpose Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 150.0 | 06F23C2340A3FR | 77.0 | 40 (N/A Light Oil) | 0.0 | 3/8 inch | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | NPT | Brass | 24.0 VDC | EPDM | Direct Lift | 11.5 W | 150.0 °F | 40 (N/A Light Oil) psi | 0.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Recognized General Purpose Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F23C2340A3FR | 77.0 °F | |
| 06F23C6140ACF4C05 | Backordered | Backordered | $624.45/each | EA | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 316 Stainless Steel | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Direct Lift | Class F | 11.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 180.0 | 06F23C6140ACFR | 130.0 | 150.0 | 0.0 | 3/8 inch | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | 316 Stainless Steel | 120/60, 110/50 VAC | NBR | Direct Lift | 11.0 W | 180.0 °F | 150.0 psi | 0.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F23C6140ACFR | 130.0 °F | |
| 06F23O2140ACF4C05 | Backordered | Backordered | $417.76/each | EA | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Open | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Direct Lift | Class F | 11.0 | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 150.0 | 06F23O2140ACFR | 130.0 | 150.0 | 0.0 | 3/8 inch | General Purpose | Normally Open | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 120/60, 110/50 VAC | NBR | Direct Lift | 11.0 W | 150.0 °F | 150.0 psi | 0.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F23O2140ACFR | 130.0 °F | |
| 08F22C2140A3F4C80 | Backordered | 2 Limited Stock | $239.06/each | EA | 1/2 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24.0 | Internally Piloted | Class F | 11.5 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 150.0 | 08F22C2140A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | 1/2 inch | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 24.0 VDC | NBR | Internally Piloted | 11.5 W | 150.0 °F | 100 (125 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 Cv | NEMA 4,4X | 08F22C2140A3FR | 77.0 °F | |
| 08F22C2140AAF | 2 Limited Stock | 7 in stock | $164.63/each | EA | 1/2 | Requires Coil from Chart 1 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 6.0 | N/A | 2 Way | 4.0 | N/A | 180.0 | 08F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | 1/2 inch | General Purpose | Normally Closed | Requires Coil from Chart 1 | NPT | Brass | Pressure Vessel Only | NBR | Internally Piloted | 6.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | N/A | N/A | 2 Way | 4.0 Cv | N/A | 08F22C2140AAFR | 77.0 °F | |
| 08F22C2140AAF4C01 | Backordered | Backordered | $234.02/each | EA | 1/2 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24/60 | Internally Piloted | Class F | 6.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 180.0 | 08F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | 1/2 inch | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 24/60 VAC | NBR | Internally Piloted | 6.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 Cv | NEMA 4,4X | 08F22C2140AAFR | 77.0 °F | |
| 08F22C2140AAF4C05 | 2 Limited Stock | 4 in stock | $234.13/each | EA | 1/2 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 180.0 | 08F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | 1/2 inch | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 120/60, 110/50 VAC | NBR | Internally Piloted | 6.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 Cv | NEMA 4,4X | 08F22C2140AAFR | 77.0 °F | |
| 08F22C2140AAFPH05 | Backordered | Backordered | $236.25/each | EA | 1/2 | DIN 43650A / ISO 4400 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 180.0 | 08F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | 1/2 inch | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | NPT | Brass | 120/60, 110/50 VAC | NBR | Internally Piloted | 6.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 Cv | NEMA 4,4X | 08F22C2140AAFR | 77.0 °F | |
| 08F22C2140ADF | Backordered | Backordered | $166.30/each | EA | 1/2 | Requires Coil from Chart 5 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 16.0 | N/A | 2 Way | 4.0 | N/A | 175.0 | 08F22C2140ADFR | 130.0 | 300.0 | 5.0 | 1/2 inch | General Purpose | Normally Closed | Requires Coil from Chart 5 | NPT | Brass | Pressure Vessel Only | NBR | Internally Piloted | 16.0 W | 175.0 °F | 300.0 psi | 5.0 psi | IOM 7321 | 5/8 inch | N/A | N/A | 2 Way | 4.0 Cv | N/A | 08F22C2140ADFR | 130.0 °F | |
| 08F22C2140ADF4C05 | Backordered | Backordered | $239.18/each | EA | 1/2 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 16.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 175.0 | 08F22C2140ADFR | 130.0 | 300.0 | 5.0 | 1/2 inch | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 120/60, 110/50 VAC | NBR | Internally Piloted | 16.0 W | 175.0 °F | 300.0 psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 Cv | NEMA 4,4X | 08F22C2140ADFR | 130.0 °F | |
| 08F22C2140ADFPH05 | Backordered | Backordered | $239.90/each | EA | 1/2 | DIN 43650A / ISO 4400 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 16.0 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 175.0 | 08F22C2140ADFR | 130.0 | 300.0 | 5.0 | 1/2 inch | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | NPT | Brass | 120/60, 110/50 VAC | NBR | Internally Piloted | 16.0 W | 175.0 °F | 300.0 psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 Cv | NEMA 4,4X | 08F22C2140ADFR | 130.0 °F | |
| 08F23C2140A3F4C80 | Backordered | Backordered | $255.74/each | EA | 1/2 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24.0 | Direct Lift | Class F | 11.5 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 150.0 | 08F23C2140A3FR | 77.0 | 40 (N/A Light Oil) | 0.0 | 1/2 inch | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 24.0 VDC | NBR | Direct Lift | 11.5 W | 150.0 °F | 40 (N/A Light Oil) psi | 0.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 Cv | NEMA 4,4X | 08F23C2140A3FR | 77.0 °F |
