*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

235871

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 235871

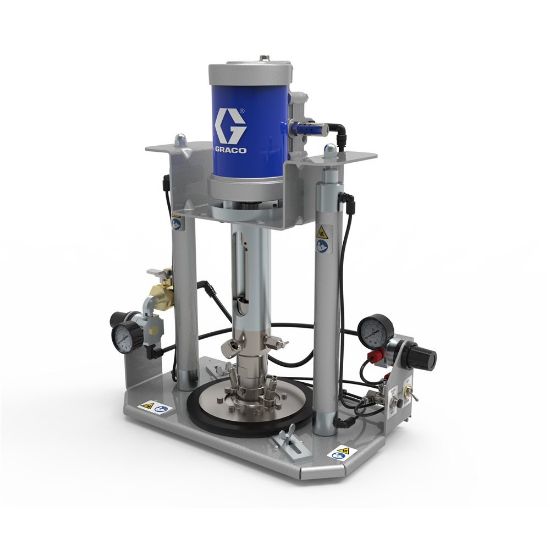

The Dynamite 190 is ideal for pumping low to medium viscosity materials from small containers.

Features

Extrudes viscous material from their original 1 quart (0.95 L) or 1 gallon (3.79 L) pails
Dispensing viscous fluids and pastes
Typical fluids handled adhesives, thermal pastes, potting compounds, heatsink compounds, encapsulants, sealants, grease, inks and colorants
Compact and lightweight
Built tough for rugged conditions

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	1200 psi
Series	190	Number of Wipers	Single Ring
Weight	18.5 lb	Ram Post Diameter	172 mm
Material Container Volume	1 gal	Ambient/Warm Melt/Hot Melt	Ambient
Fluid Outlet Thread Gender	Female	Sound Pressure Level	76.5 dB(A)
Air Inlet Size	1/4 Inch	Maximum Operating Temperature	140 deg F
Air Inlet Thread Gender	Female	Control Options	Standard
Fluid Outlet Thread Type	NPT	Seal Material	Tivar Ceram-P
Air Inlet Thread Type	NPT	Maximum Air Inlet Pressure	100 psi
Model	DynaMite	Fluid Outlet Size	1/4 Inch
