*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

239730

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 239730

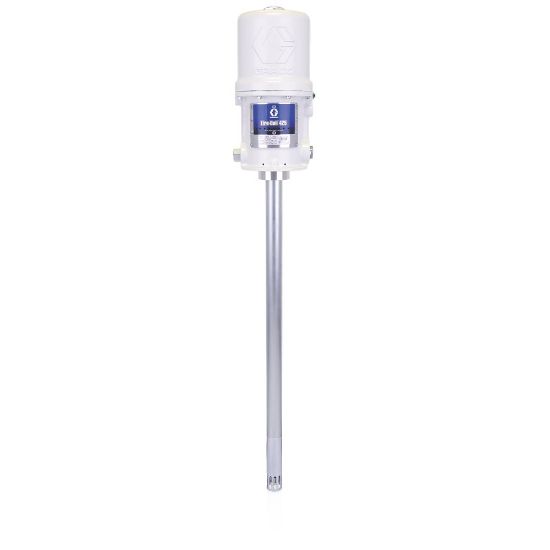

The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

Features

Durable
Fewer Repairs
Superior Sealing
Extended Seal Life
Corrosion-Resistant

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Series	425
Cycles Per Gallon	165	Weight	30 lb
Maximum Working Pressure	7500 PSI	Throat Seal Type	Wiper
Air Inlet Size	0.5 Inch	Pump Ratio	75:1
Maximum Air Inlet Pressure	100 psi	Seal Material	Nitrile Rubber
Fluid Outlet Thread Type	NPT	Fluid Inlet Type	Slotted
Air Inlet Thread Gender	Female	Maximum Intermittent Cycle Rate	60 CPM
Air Inlet Thread Type	NPT	Sound Power Level	94.62 dB(A)
Air Motor Effective Diameter	4.25 Inch	Maximum Continuous Cycle Rate	60 CPM
Fluid Outlet Size	3/8 Inch	Sound Pressure Level	80.85 dB(A)
Fluid Outlet Thread Gender	Female	Model	Fire-Ball
