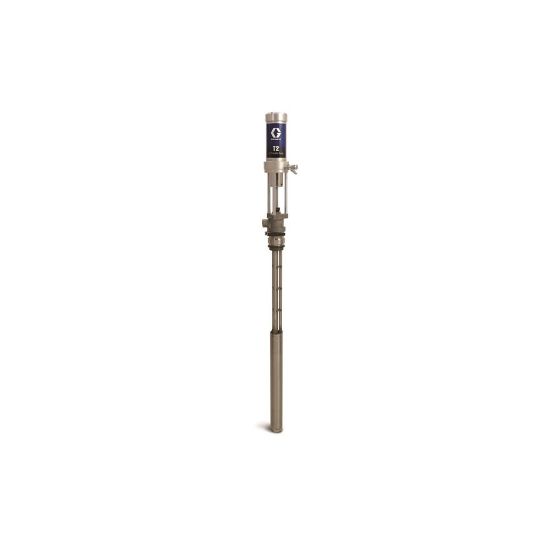

Graco 246898 | Piston Pump | Pneumatic | 5 GPM Maximum Flow Rate | 405 psi Maximum Working Pressure | T2 Model | 1/4 Inch Air Inlet Size | NPT Air Inlet Thread
Availability:
Backordered
Estimated Lead Time: 10 days
Partner Available:Backordered
SKU 246898
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Graco's family of transfer pumps maintains performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.

Features

  • Provide consistent feed pressures and flow rates for dependable results
  • Lower pressure drops with higher viscosity materials at any ambient temperature
  • Designed and manufactured by the worldwide leader in pump technology
  • Longer lasting pump
  • Quick-release bung adapter for easy drum removal without interference from hose connections
  • Stainless steel wetted parts for corrosion-resistance
  • PTFE seals for improved performance and less maintenance

Applications

  • Industrial
Products specifications
Attribute nameAttribute value
UOMEACycles Per Gallon15.9
Maximum Working Pressure405 psiPackage OptionsSupply Hose
Weight21 lbSound Pressure Level88.7 dB(A)
ModelT2Fluid Outlet Thread TypeNPT
Air Inlet Thread TypeNPTPump Ratio2.25:1
Maximum Operating Temperature190 deg FSeal MaterialPTFE
Maximum Continuous Cycle Rate100 CPMFluid Outlet Thread GenderFemale
Fluid Outlet Size3/4 InchMaximum Air Inlet Pressure180 psi
Air Inlet Thread GenderFemaleAir Inlet Size1/4 Inch
Sound Power Level96.8 dB(A)
