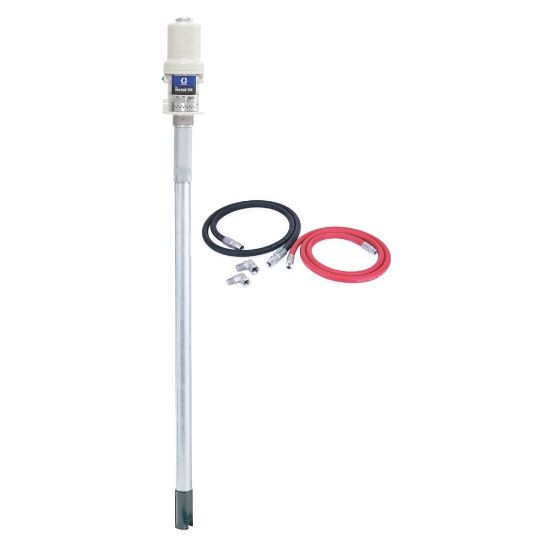

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

246907

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 246907

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

Features

Durable
Fewer Repairs
Extended Seal Life
Reduce Downtime
Superior Sealing
Reduced Icing
Corrosion-Resistant

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	16 lb
Maximum Working Pressure	540 psi	Cycles Per Gallon	43.5
Series	225	Fluid Inlet Size	1-1/2 Inch
Fluid Inlet Thread Gender	Female	Maximum Continuous Cycle Rate	100 CPM
Air Inlet Thread Type	NPT	Fluid Outlet Thread Type	NPT
Sound Power Level	85.6 dB(A)	Air Inlet Thread Gender	Female
Maximum Air Inlet Pressure	180 psi	Pump Ratio	3:1
Air Motor Effective Diameter	2.25 Inch	Sound Pressure Level	77.8 dB(A)
Air Inlet Size	3/8 Inch	Maximum Air Consumption	20 SCFM
Model	Mini Fire-Ball	Fluid Outlet Size	1/2 Inch
Fluid Outlet Thread Gender	Female	Fluid Inlet Thread Type	NPT
