248167

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 248167

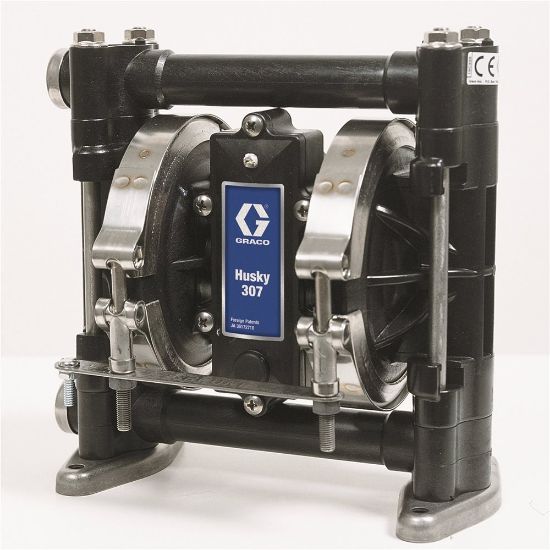

The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.

Features

Quick and easy assembly and disassembly design
Easy to service air valve and ball checks
Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
Split manifold option to pump multiple fluids without mixing
Every pump is tested prior to shipping
3/8 in (9.52 mm) end porting
Delivery up to 7 gpm (26.5 lpm)
Easy-to-service air valve and ball checks

Applications

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Air Exhaust Port Thread Gender	Female
Series	307	Weight	5.25 lb
Maximum Flow Rate	6.5 GPM	Ball Material	Buna-N
Fluid Outlet Thread Gender	Female	Fluid Inlet Thread Type	NPT
Maximum Cycle Rate	330 CPM	Fluid Inlet Thread Gender	Female
Maximum Air Consumption	5.5 SCFM	Maximum Solid Size	0.0625 Inch
Minimum Operating Temperature	40 deg F	Air Inlet Thread Type	NPT
Air Inlet Size	1/4 Inch	Air Exhaust Port Size	3/8 Inch
Air Inlet Thread Gender	Female	Model	Husky
Center Section Material	Polypropylene	Diaphragm Compatible Material	Buna
Diaphragm Material	Buna-N	Air Exhaust Port Thread Type	NPT
Maximum Operating Temperature	150 deg F	Fluid Inlet Size	3/8 Inch
Fluid Outlet Thread Type	NPT	Fluid Outlet Size	3/8 Inch
Manifold Configuration	End Port
