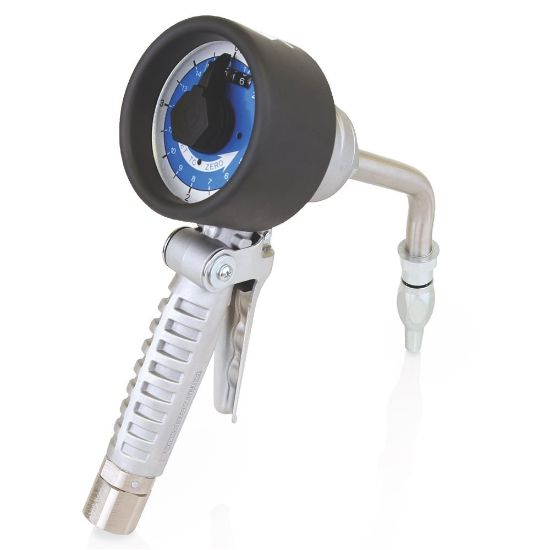

24V037

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24V037

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	103.4 bar; 1500 psi
Maximum Flow Rate	8 GPM	Meter Accuracy	±1% %
Trigger Lock	Locking	Outlet Size	0.75 Inch
Minimum Operating Temperature	-50 deg F	Dispense Type	Manual
Metering Gun Weight	3.42 lb	Outlet Thread Type	ORB
Compatible Material	Oil;Antifreeze	Inlet Size	1/2 Inch
Inlet Thread Type	NPT	Meter Pressure Loss	2 Bar; 30 psi
Nozzle Type	Manual	Maximum Operating Temperature	160 °F
Recommended Environment	Indoor;Outdoor	Extension Type	Rigid
Display Type	Mechanical
