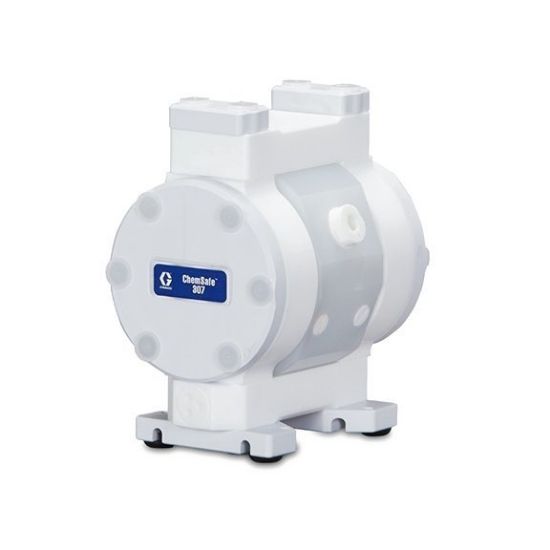

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

24X428

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X428

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	6.7 GPM	Connection Type	Threaded
Series	307	Material	PTFE
Type	Pneumatic	Fluid Inlet Thread Gender	Female
Minimum Storage Temperature	32 deg F	Model	ChemSafe
Maximum Operating Temperature	212 deg F	Minimum Operating Temperature	32 deg F
Fluid Outlet Thread Type	BSP	Maximum Solid Size	0.08 Inch
Air Inlet Thread Gender	Female	Center Section Material	Polypropylene
Fluid Inlet Thread Type	BSP	Maximum Air Consumption	9.3 SCFM
Fluid Inlet Size	3/8 Inch	Fluid Outlet Size	3/8 Inch
Air Inlet Size	1/8 Inch	Manifold Configuration	Center Port
Air Inlet Thread Type	BSPT	Fluid Outlet Thread Gender	Female
Maximum Cycle Rate	610 CPM
