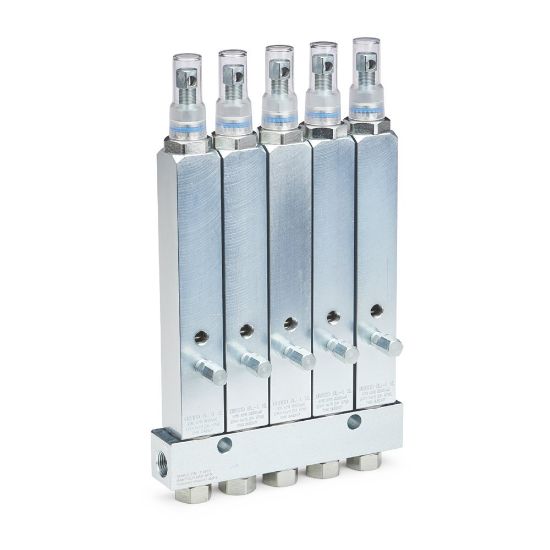

24X815

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 24X815

$1,301.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Dispense Outlet Size	0.13 Inch
Maximum Working Pressure	414 bar; 6000 psi	Adjustable	Yes
Series	XL	Maximum Output Volume	0.315 Cubic Inch
Dispense Outlet Thread Type	NPT	Compatible Metering Device	Single Line Parallel
Maximum Reset Pressure	1000 psi	Maximum Operating Pressure	6000 psi
Inlet Size	3/8 Inch	Inlet Thread Type	NPT
Maximum NLGI Grade	#2	Compatible Material	Grease
Outlet Thread Type	NPT	Outlet Size	3/8 Inch
Minimum Operating Pressure	1850 psi	Model	GL-1
Cycle Indicator	Visual	Minimum Output Volume	0.035 Cubic Inch
