*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

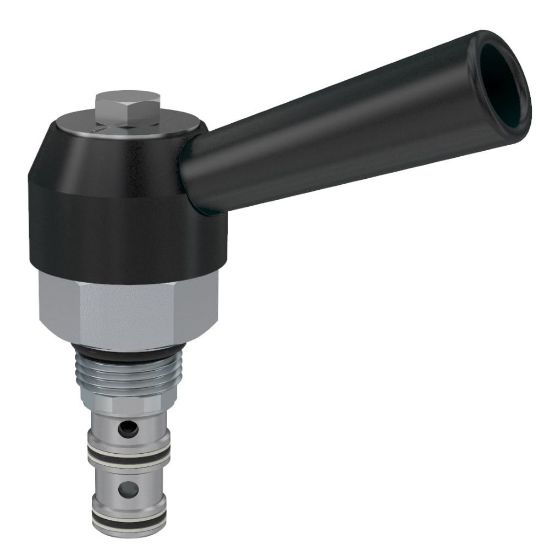

DM103FKD - 3 Way Rotary Type Manual Valve

REGIONAL - Parker’s manually operated 3-way, 2 or 3-position directional control spool valve is capable of flows up to 23 lpm (6 gpm) and pressures as high as 240 bar (3500 psi). Knob and lever actuators are available with detents.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	3 in stock

SKU DM103FKD

$170.52/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Detents	2 position detent
Configuration	Finger Knob	Seal Material	Nitrile
Actuation Type	Rotary	Weight	0.3 lb
Minimum Operating Temperature	-34 °C	Maximum Operating Temperature	+121 °C
Configuration	Finger Knob	Seal Material	Nitrile
Maximum Tank Pressure	500 psi	Rotation Angle	90 °
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	240 bar	Installation Torque	16 lb-ft
Detents	2 position detent	Cavity Size	C10-3
Function	Spool Type	Valve Material	Stem, stainless steel. All other parts hardened steel.
Leak Rate	164 @ 3500 PSI (240 BAR) cm3/min	Flow Rate	6 Gal/min
Maximum Flow Rate	6 Gal/min	Operation Type	Manual
Body Material	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Inlet Pressure Rating	3500 psi
