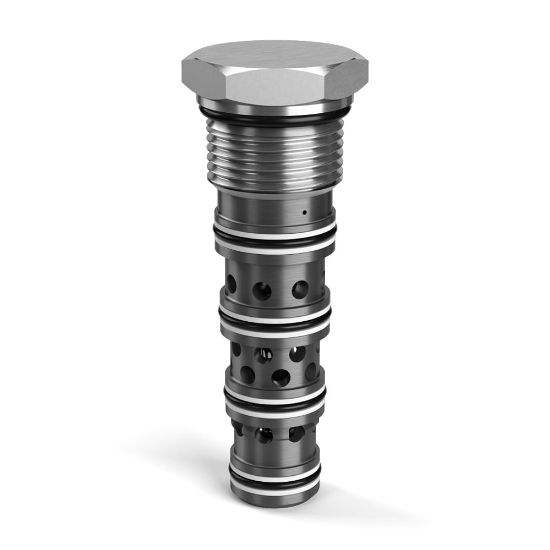

N5A125-10.0N - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	38 in stock

SKU N5A125-10.0N

$243.18/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	42 GAL/MIN, 160 L/MIN	Flow Direction	2-3 Neutral, 3-4 Piloted
Switching Pressure	145 PSI, 10 BAR	Configuration	Open Transition
Standard Flow Rate Setting	24 GAL/MIN, 90 L/MIN	Seal Material	Nitrile
Body Material	n/a	Operation Type	Pilot Operated
Pilot Location	External	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Maximum Operating Pressure	420 bar
Maximum Inlet Pressure Rating	6000 psi	Maximum Flow Rate	42 Gal/min
Drain Option	External	Function	Diverter
Maximum Operating Temperature	+121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Flow Direction	2-3 Neutral, 3-4 Piloted	Installation Torque	63 lb-ft
Cavity Size	5A	Configuration	Open Transition
Switching Pressure	10 bar	Flow Rate	42 Gal/min
Actuation Type	Switching	Weight	0.76 lb
Leak Rate	275 @ 2900 PSI (200 BAR) cm3/min	Standard Flow Rate Setting	90 L/min
