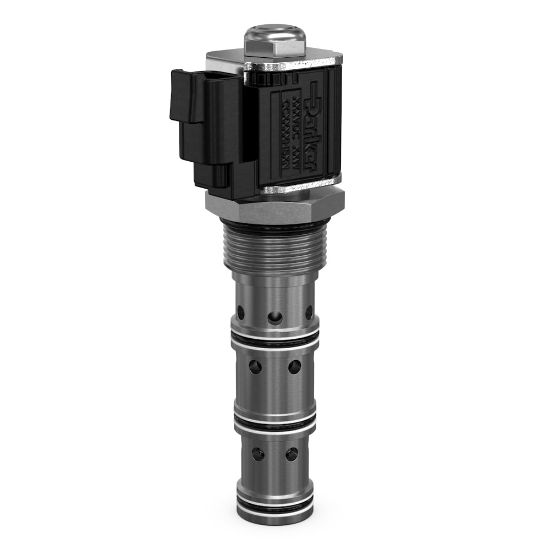

DSH164H - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU DSH164H

$323.64/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Actuation Type	Electrical
Configuration	N/A	Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized
Flow Rate	30 GAL/MIN, 113 L/MIN	Actuation Type	Electrical
Seal Material	Nitrile	Body Material	n/a
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	n/a
Minimum Operating Temperature	-34 °C	Override Functionality	n/a
Maximum Operating Pressure	350 bar	Maximum Inlet Pressure Rating	5000 psi
Operation Type	Solenoid Operated	Cavity Size	C16-4
Maximum Flow Rate	30 Gal/min	Function	4-Way
Maximum Operating Temperature	+250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Mounting Type	Screw in cartridge valve	Weight	1.3 lb
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Nut Tightening Torque	7-10 Nm	Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized
Flow Rate	113 L/min	Leak Rate	350 De-energized, 1.5 GPM Energized Pilot Flow @ 3000 PSI (207 BAR) cm3/min
Response Time	130 ms	Installation Torque	30-40 lb-ft
