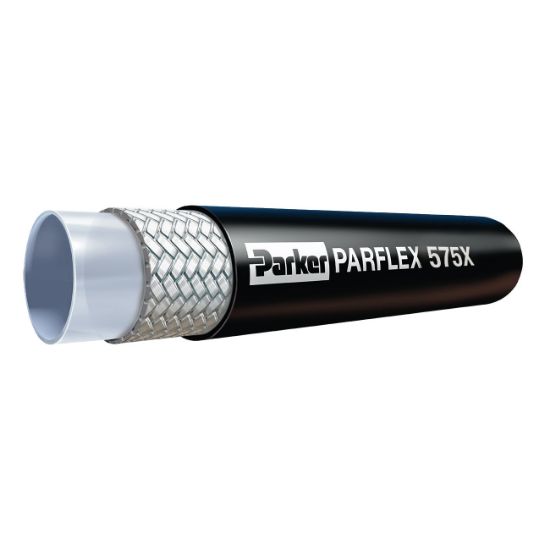

575X-4 - 5,000 PSI Hydraulic Hose - 575X/575XN

Parflex 575X Fast Response Constant Pressure Hoses are designed for applications such as offshore drilling, that require fast response times.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	265 in stock

SKU 575X-4

$8.11/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Cover Material	Polyurethane, TOUGHJACKET	Minimum Operating Temperature	-40 °C
Media	Air	Size	-4
Inside Diameter	6 mm	Design Factor	4:1
Outside Diameter	0.510 inch	Maximum Operating Temperature	212 °F
Cover Material	Polyurethane	Hose Inner Tube Material	Polyamide (PA)
Maximum Operating Pressure	345 bar	Weight	0.07 lb/ft
Minimum Bend Radius	51 mm	Specifications Met	DNV GL
Compatible Fitting	CG Series	Hose Reinforcement Material	Aramid Fiber
