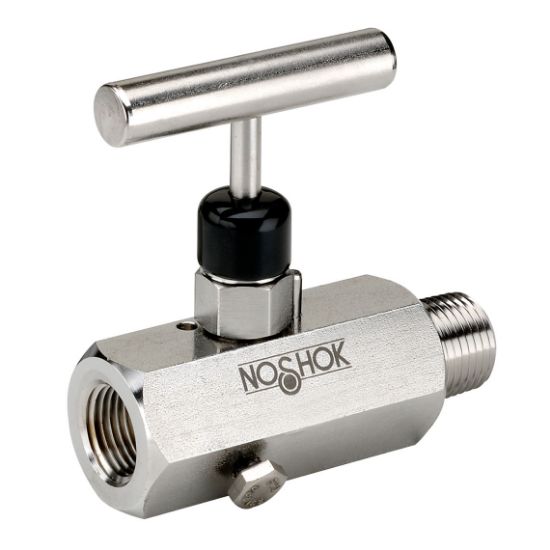

Picture of 604-MFS - 600 Series Block and Bleed Needle Valves with Hard Seat

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

604-MFS - 600 Series Block and Bleed Needle Valves with Hard Seat

Manufacturer: NOSHOK, Inc.
Availability:
Backordered
Estimated Lead Time: 21 days
Partner Available:Backordered
SKU 604-MFS
$315.20/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEANotePlease consult the factory for special application requests.

All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.
Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional Information
  • FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional
  • All stem threads are rolled for strength and ease of operation
  • One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
  • Slotted spring pin to prevent accidental loosening
  • Vinyl dust cap for bonnet and stem (non-packing)
  • 0.090" bleed hole located on the bottom is controlled by a 1/4"-20 UNF-2A bleed screw
Limitations Which Apply AreThese units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.		Warranty_yr3
Process Connection Size1/2Installed Options and Accessories
  • Packing (If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the Pressure vs. Temperature: Packing Style with Compatible Fluid chart Options Reference Chart)
    • PTFE (P1)
    • Graphite (P2)
  • Stem Tips
    • Non-rotating (316 Stainless Steel) (T1)
    • Ball, 440C Stainless Steel (T5)
    • Ball, carbide (T6)
    • Ball, ceramic (T7)
    • Ball, Monel (T8)
    • Non-rotating regulating, 316 Stainless Steel (T9)
  • O-Rings (Other o-ring materials available on request)
    • EPDM (EM1)
    • FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1)
    • NBR (NB1)
  • Panel Mount
    • 1 nut (PM1)
    • 2 nuts (PM2)
  • Handles
    • 1-3/8" Phenolic Handle (HL4)
    • 1-3/4" Phenolic Handle (HL5)
  • Cleaning For Oxygen Service (Stainless Steel Only)
Assembly OptionsNOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.Stem Seal and TypeAll 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional
Additional Options
  • O-Rings
    • EPDM (EM1)
    • FFKM (Perfluoroelastomer 3018 or equivalent) (KZ1)
    • NBR (NB1)
  • Handles
    • 1-3/8" Phenolic (HL4)
    • 1-3/4" Phenolic (HL5 )
Connection1/2" NPT
MaterialElectropolished 316 Stainless SteelPressure Rating at 200ºF10,000
Handles2-1/2" "T" HandleFlow Coefficient Cv0.44
Connection TypeNational Pipe Thread (NPT)SeatHard Seat
Handle MaterialStainless SteelStem TipsStainless Steel
Valve MaterialStainless SteelValve TypeMale-Female
Body MaterialElectropolished 316 Stainless SteelTypeNeedle Valve
Orifice Size_in0.187O-Rings MaterialFKM
Weight_lb1.3
