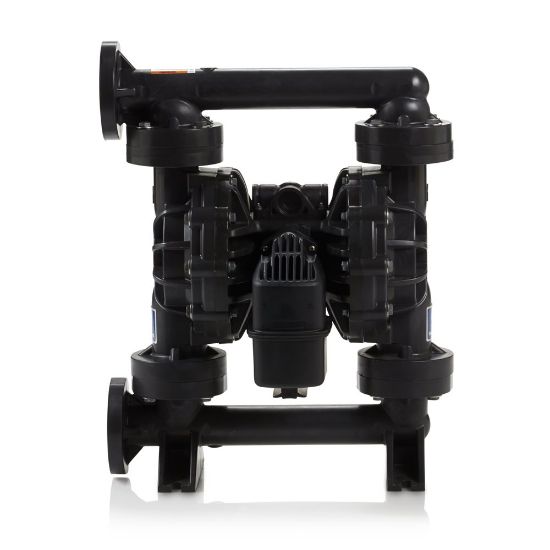

654548

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 654548

Products specifications

Attribute name	Attribute value
UOM	EA	Material	PVDF
Type	Pneumatic	Connection Type	Center Flange ANSI/DIN
Weight	74 lb	Series	15120
Maximum Flow Rate	120 GPM	Ball Material	PTFE
Air Exhaust Port Thread Gender	Female	Air Inlet Thread Gender	Female
Fluid Inlet Size	1-1/2 Inch	Minimum Operating Temperature	32 deg F
Air Inlet Thread Type	NPT	Diaphragm Compatible Material	Santoprene
Maximum Air Consumption	85 SCFM	Manifold Configuration	End Port
Air Inlet Size	1/2 Inch	Model	Husky
Air Exhaust Port Thread Type	NPT	Center Section Material	Polypropylene
Diaphragm Material	Santoprene	Maximum Cycle Rate	183 CPM
Maximum Solid Size	0.25 Inch	Fluid Outlet Thread Gender	Female
Air Exhaust Port Size	1 Inch	Minimum Storage Temperature	32 deg F
Maximum Operating Temperature	225 deg F	Fluid Outlet Size	1-1/2 Inch
Fluid Inlet Thread Gender	Female
