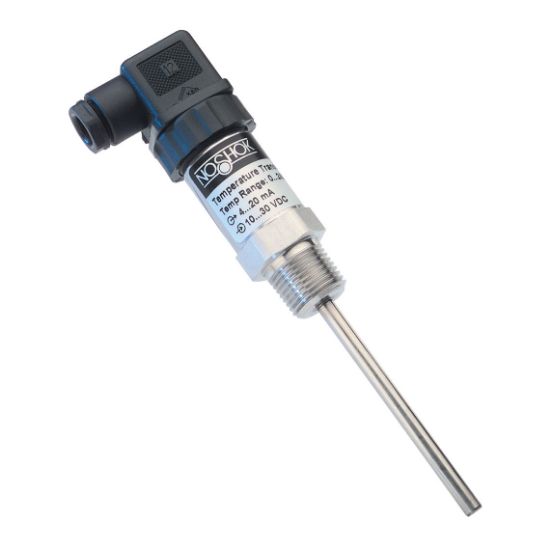

Picture of 800-0/200-1-1-8-8-025-6 - 800 Series Platinum Resistance Temperature Transmitters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

800-0/200-1-1-8-8-025-6 - 800 Series Platinum Resistance Temperature Transmitters

Manufacturer: NOSHOK, Inc.
Availability:
Backordered
Estimated Lead Time: 13 days
Partner Available:Backordered
SKU 800-0/200-1-1-8-8-025-6
$347.52/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEANoteThermowells are recommended for pressure, corrosive fluids and high velocity applications.
Application
  • Water systems
  • Storage tanks
  • Industrial machinery and machine tools
  • HVAC systems
  • Refrigeration systems
Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Additional Information
  • Quick response time
  • Also available with our 1800 Series attachable loop indicator (see options & accessories below)
  • Built to suppress RFI, EMI, and ESD
Limitations Which Apply AreThese units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Warranty_yr3Related Items50-025-304-SS, 1/2" National Pipe Thread (NPT) Straight Shank, 2-1/2" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 304 Stainless Steel Thermowell 50-025-316-SS, 1/2" National Pipe Thread (NPT) Straight Shank, 2-1/2" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 316 Stainless Steel Thermowell 75-025-304-SS, 3/4" National Pipe Thread (NPT) Straight Shank, 2-1/2" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 304 Stainless Steel Thermowell 75-025-316-SS, 3/4" National Pipe Thread (NPT) Straight Shank, 2-1/2" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 316 Stainless Steel Thermowell
Process Connection Size1/2AccuracyClass B + (±0.5 % BFSL)
Measuring ElementClass B per Norm European Standards (EN) 60751 (International Electrotechnical Commission (IEC 751))Options and AccessoriesNOSHOK 1800 Series Attachable Loop-Powered Digital Indicators can be fitted to certain NOSHOK pressure transmitters utilizing a 4 mA to 20 mA output signal and the DIN EN 175301-803 Form A Electrical Connection.
Output Signal4 to 20 mA, 2-WireElectrical ProtectionReverse polarity, over-voltage and short circuit protection
Electromagnetic RatingBuilt to suppress RFI, EMI, and ESD, Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:1997/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) ProtectionThermowellsThermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument.
Output±[0.30 + 0.005 ltl] ºC<br>±0.5% Full ScaleLoad Limitations&le;(VPower - 10)/0.020 Amp for 4 to 20 mA output<br>&le;5000 &Omega; for 1 to 5 Vdc output<br>&le;10, 000 &Omega; for 0 to 10 Vdc output<br>&le;4500 &Omega; for 0.5 to 4.5 Vdc output
Power Supply10 to 30 Vdc (4 to 20 mA, 2-Wire)<br>10 to 30 Vdc (0 to 5 Vdc, 3-Wire)<br>10 to 30 Vdc (1 to 5 Vdc, 3-Wire)<br>14 to 30 Vdc (0 to 10 Vdc, 3-Wire)Sensor ProtectionBurnout Protected from 3.3 to 23 mA
Environmental ProtectionIngress Protection (IP65) According to Norm European Standards (EN) 60529/(International Electrotechnical Commission (IEC 529))Storage Temperature [Min]_ºC-40
Storage Temperature [Min]_ºF-40Standard Temperature Ranges_ºF-40 to 120 50 to 400
TypeTransmitterPressure Rating_psi725
Ambient Temperature Range_ºC-40 to 85Operating Temperature [Min]_ºF0
Stem Lengths_in2.5Series800
Approximate Weight_oz4Electrical ConnectionDIN EN 175301-803 Form A
Housing Material316 Stainless SteelTemperature [Max]_ºF200
Storage Temperature [Max]_ºF185Sensor Length_in2.5
Temperature [Min]_ºF0Wetted Materials316 Stainless Steel
Storage Temperature [Max]_ºC85Connection Size_in1/2 in
Operating Temperature [Max]_ºF200Stem Diameter_mm6
Ambient Temperature Range_ºF-40 to 185Process Connection TypeNPT Male
Process Connection1/2" NPT Male
